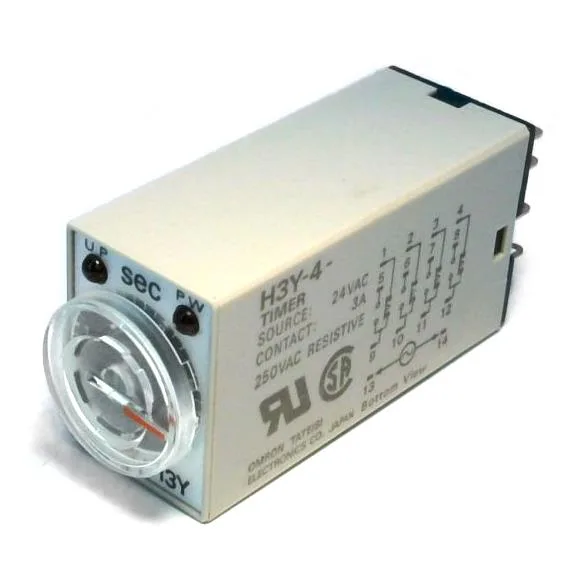

Omron H3Y-4 AC24 10S — Electronic Timers & Counters

H3Y-4 AC24 10S Time Delay Relay, 4PDT, 0.5-10 Sec, 24VAC

MPNH3Y-4 AC24 10S
Active

Omron H3Y series, 4PDT (4 Form C) time delay relay, 0.5 Sec ~ 10 Sec delay, 24VAC supply, 3A @ 250VAC contact rating, socketable plug-in termination.

$35.56Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

H3Y-4 AC24 10S — Identification
ParameterValue
SeriesH3Y
H3Y-4 AC24 10S — Function & Modes
ParameterValue
FunctionOff-Delay, On-Delay
H3Y-4 AC24 10S — Timing & Counting
ParameterValue
Delay time range0.5 Sec ~ 10 Sec
Timing adjustment methodHand Dial
Timing initiate methodInput Voltage
H3Y-4 AC24 10S — Electrical
ParameterValue
Supply voltage24VAC
H3Y-4 AC24 10S — I/O & Contacts
ParameterValue
Contact rating @ voltage3A @ 250VAC
Contact circuit (Form)4PDT (4 Form C)
Relay typeMechanical Relay
H3Y-4 AC24 10S — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In

Product details

The Omron H3Y-4 AC24 10S is a socket-mount time delay relay from the H3Y series, switching up to 3A at 250VAC across four independent form-C contact sets. It operates on a 24VAC supply and covers a 0.5 to 10 second delay range, adjustable by hand dial. The timing mode can be set for either off-delay or on-delay, initiated by applying the input voltage.

The 4PDT (4 Form C) contact arrangement gives you four independent switchable circuits per relay, each rated 3A at 250VAC. That covers most pilot-duty and small-load switching inside a panel — signal lamps, contactor coils, solenoid valves — without needing a separate interposing relay per circuit.

Frequently asked questions

How do I get current pricing and availability for H3Y-4 AC24 10S?

Submit an RFQ through this listing. Pricing and stock are confirmed at quote time through our independent sourcing network — no automated price or lead-time number is published here.

What is H3Y-4 AC24 10S's listed circuit configuration?

It is a 4PDT (4 Form C) relay — four independent sets of normally-open and normally-closed contacts.

What is the delay time range and adjustment method?

The delay is adjustable from 0.5 seconds to 10 seconds via a hand dial on the relay face.
