H3Y-4 DC24 10S at a glance

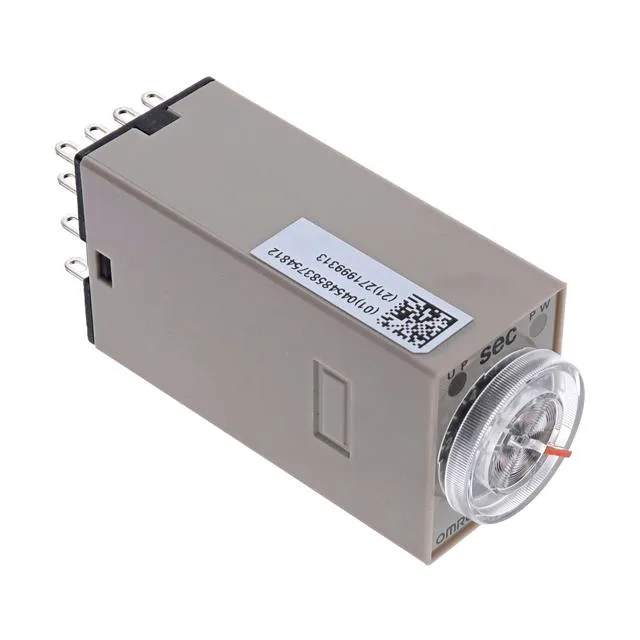

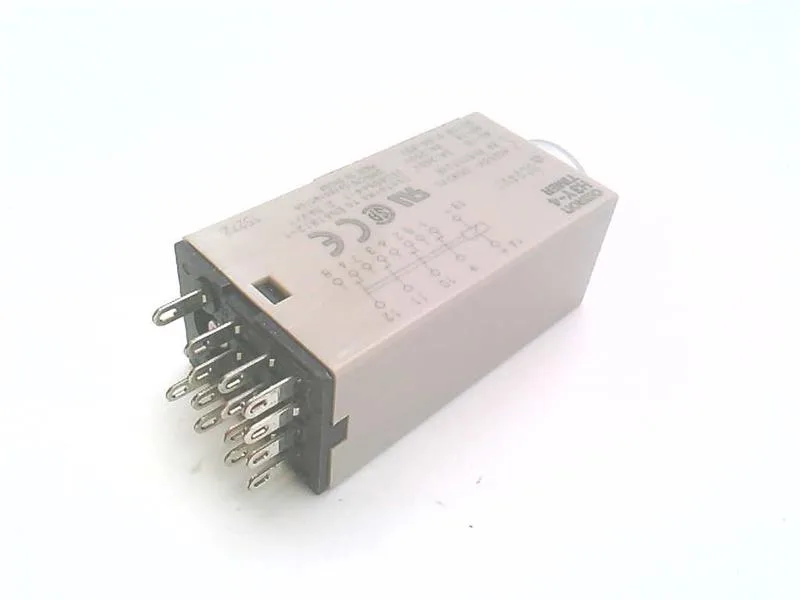

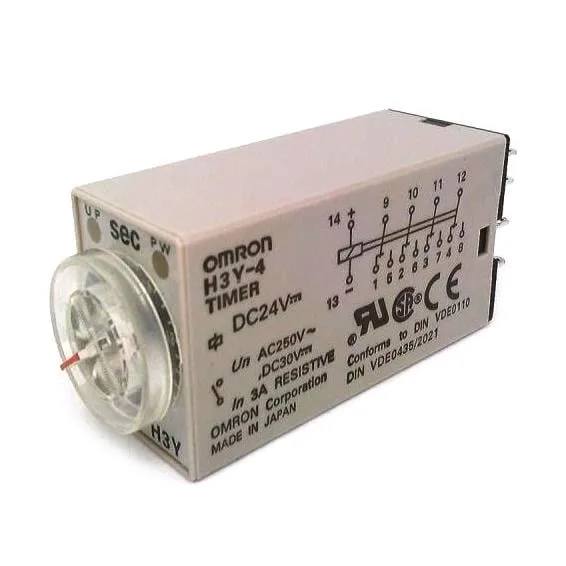

The Omron H3Y-4 DC24 10S is a Series H3Y timer relay built around a mechanical relay, configured as 4PDT (4 Form C) with both off-delay and on-delay functions in the same socket-mount body, supplied at 24 VDC and adjustable from 0.5 s to 10 s on a hand dial. Plug-in termination on an industry-standard 11-pin socket means the device swaps in directly from a panel-front position without re-wiring — a deliberate design choice for the maintenance-spare buyer who wants one in the cabinet before the old one fails.
Contacts and timing range
Contact rating of 3 A at 250 VAC covers the usual control-level loads — relay coils, small solenoids, indicator banks, and the inputs to a downstream PLC — not power switching; that ceiling is what bounds the timer's placement in the panel. Timing initiation is input-voltage, so the 24 VDC rail that powers the coil also acts as the start signal — no separate trigger terminal to wire. The 0.5–10 s hand-dial adjustment is the only user setting on the device; the dial sets the field delay and nothing else.
