Omron H3Y-4 DC24 1S — Electronic Timers & Counters

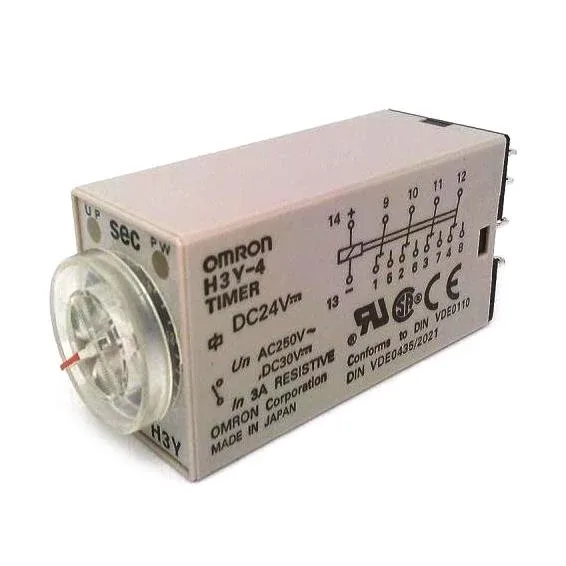

Omron H3Y-4 DC24 1S Time Delay Relay, 4PDT, 0.1-1 Sec, 24VDC

MPNH3Y-4 DC24 1S
Active

Omron H3Y series, mechanical time delay relay, 4PDT (4 Form C), 0.1 Sec ~ 1 Sec delay, 24VDC supply, 3A @ 250VAC, socketable plug-in.

$36.83Ref. price · indicative, final on quote
Omron H3Y-4 DC24 1S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H3Y-4 DC24 1S — Identification
ParameterValue
SeriesH3Y
H3Y-4 DC24 1S — Function & Modes
ParameterValue
FunctionOff-Delay, On-Delay
H3Y-4 DC24 1S — Timing & Counting
ParameterValue
Delay time range0.1 Sec ~ 1 Sec
Timing adjustment methodHand Dial
Timing initiate methodInput Voltage
H3Y-4 DC24 1S — Electrical
ParameterValue
Supply voltage24VDC
H3Y-4 DC24 1S — I/O & Contacts
ParameterValue
Contact rating @ voltage3A @ 250VAC
Contact circuit (Form)4PDT (4 Form C)
Relay typeMechanical Relay
H3Y-4 DC24 1S — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In

Product details

The Omron H3Y-4 DC24 1S is a mechanical time delay relay from the H3Y series, offering both Off-Delay and On-Delay functions selectable via the hand dial. The delay range is 0.1 Sec to 1 Sec, initiated by input voltage. Contact configuration is 4PDT (4 Form C) rated at 3A @ 250VAC, sufficient for switching small motor starters, contactor coils, or pilot lights in a control panel. Supply is 24VDC, termination is plug-in to an 8- or 11-pin socket (socketable mounting).

Socketable plug-in termination means the relay body mounts to a standard 8- or 11-pin octal-style socket (not included). The hand dial for timing adjustment is accessible on the relay face, allowing field changes without removing the relay from the socket. The 4PDT output provides four independent Form C contacts, each rated 3A @ 250VAC — adequate for pilot-duty control circuits in a panel.

Frequently asked questions

Who supplies H3Y-4 DC24 1S and how is it quoted for volume purchases?

This part is sourced through independent industrial automation distribution. For volume procurement, submit an RFQ; availability and current pricing are confirmed at quote time.

What is H3Y-4 DC24 1S's listed series and circuit?

The series is H3Y. The circuit is 4PDT (4 Form C), meaning four independent changeover contact sets.

What is the delay range and adjustment method?

The delay range is 0.1 Sec to 1 Sec, adjustable via a hand dial on the relay face. Timing is initiated by applying the input voltage.

MPN
H3Y-4 DC24 1S
