Omron H3Y-4 DC24 60S

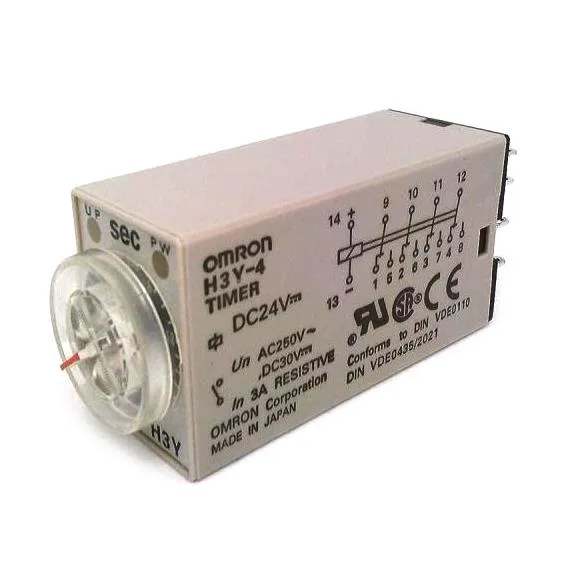

Omron H3Y-4 DC24 60S Time Delay Relay, 4PDT, 60s

MPN H3Y-4 DC24 60S
Active

Omron H3Y series, 4PDT (4 Form C) mechanical time delay relay, 24 VDC supply, 2 to 60 second delay range, 3 A at 250 VAC contact rating, socketable plug-in termination.

$36.83 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

H3Y-4 DC24 60S specifications
ParameterValue
SeriesH3Y
TypeMechanical Relay
Supply voltage24 VDC
MountingSocket
PackageBulk
Delay time2 Sec to 60 Sec
Timing initiate methodInput Voltage
Timing adjustment methodHand Dial

Product details

The Omron H3Y-4 DC24 60S is a mechanical time delay relay from the H3Y series, offering a 4PDT (4 Form C) contact arrangement. It operates on a 24 VDC supply and provides an adjustable delay range from 2 seconds to 60 seconds, configurable for either off-delay or on-delay timing functions via a hand dial. The 3 A at 250 VAC contact rating covers typical pilot duty and small load switching in control panels.

The 4PDT arrangement gives you four independent form-C (changeover) contacts, which means this single relay can switch four separate circuits — useful for sequencing multiple solenoid valves or signalling a PLC across different voltage domains. The 3 A at 250 VAC rating is resistive/pilot-duty level; it will handle contactors, small relays, and indicator loads, but not direct motor inrush. The 24 VDC coil is standard for industrial control supplies, and the socketable plug-in base (separate, not included) means a failed unit swaps in seconds without rewiring.

Deployment context

Socketable plug-in termination and the 4PDT form factor suit DIN-rail or panel-mount timer sockets. The hand-dial adjustment is accessible without removing the relay, which helps during commissioning when timing tweaks are frequent.

MPN
H3Y-4 DC24 60S
