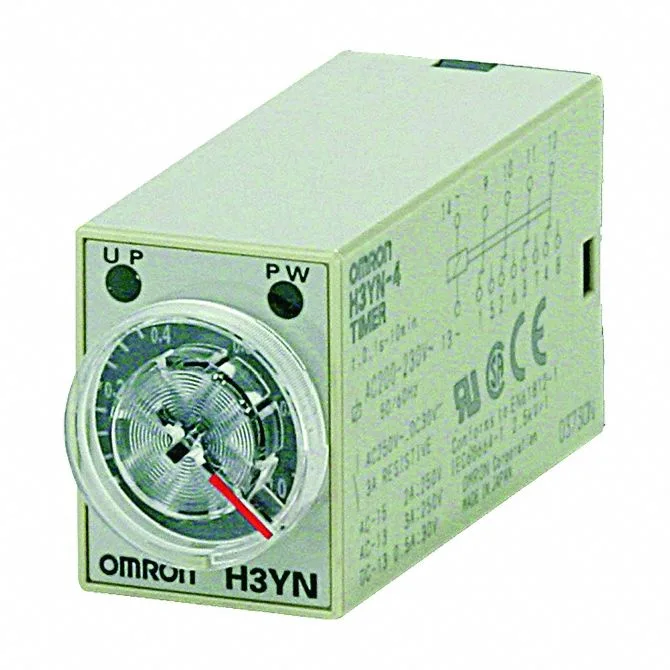

Omron H3YN-21 AC100-120
MPNH3YN-21 AC100-120
Active
RELAY TIME DELAY 10HRS 5A 250V
$41.91 – $121.06Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Electrical connection type | Pin |
| Input voltage | 100 to 120V AC |
| Current rating | 5 A |
| Contact form | DPDT |
| IP rating | IP40 |
| Adjustment interface | Analog |
| Maximum operating temperature | 50 °C |
| Minimum operating temperature | -10 °C |
| Body depth | 2.22 in |
| Body width | 0.84 in |
| Body height | 1.1 in |
| Electrical operating durability | 500,000 |
All specifications
| Parameter | Value |
|---|---|
| Mechanical operating durability | 1,000,000 |
| Standards | (EMI) EN 61812-1; (EMS) EN 61812-1; Conforms to EN 61812-1 and IEC 60664-1. (2.5 kV/2 for H3YN-2/-21, 2.5 kV/1 for H3YN- 4/-41, H3YN-4-Z/-41-Z); Emission AC Mains: EN 55011 Group 1 Class A; Emission Enclosure: EN 55011 Group 1 Class A; Immunity Burst: IEC 61000-4-4; Immunity Conducted Disturbance: IEC 61000-4-6; Immunity ESD: IEC 61000-4-2; Immunity RF-interference: IEC 61000-4-3; Immunity Surge: IEC 61000-4-5; Immunity Voltage Dip/Interruption: IEC 61000-4-11; UL 508, CSA C22.2 No. 14, Lloyd's, CCC: GB/T 14048.5 |
| Brand | OMRON |
| Delay function | Flicker Off Start; Flicker On Start; Interval; On Delay |
| Pin count | 8 |
| Relay operation | Solid State |
| Contact rating | 5 A @ 250V (Resistive Load) |
| Maximum time setting | 1 min |
| Minimum time setting | 0.1 min |
| Operating time accuracy | ±1% FS max |
| Number of delay functions | 4 |
MPN
H3YN-21 AC100-120
