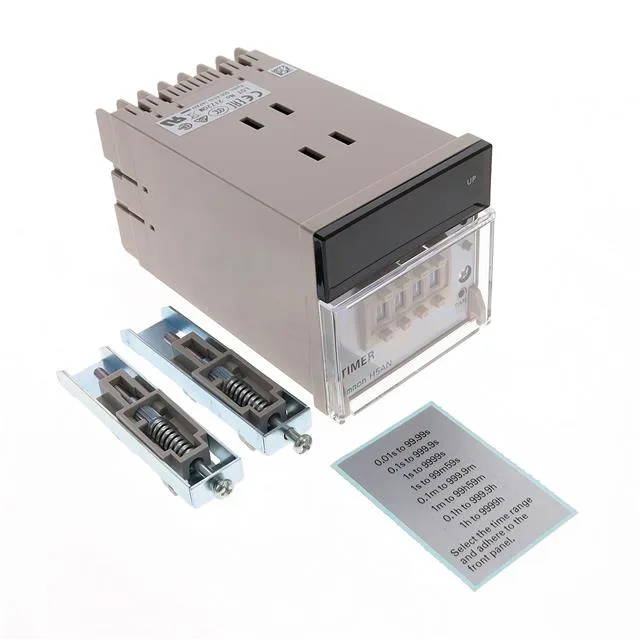

Omron H5AN-4DM AC100-240 — Electronic Timers & Counters

Omron H5AN-4DM AC100-240 Programmable Timer, 0.01s-9999hr, 3

MPNH5AN-4DM AC100-240
Active

Omron H5AN Series, Programmable (Multi-Function) Time Delay Relay, SPDT (1 Form C), 3A @ 250VAC, 100 ~ 240VAC Supply, Panel Mount, Screw Terminal.

$285.15 – $563.89Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H5AN-4DM AC100-240 — Identification
ParameterValue
SeriesH5AN
H5AN-4DM AC100-240 — Function & Modes
ParameterValue
FunctionProgrammable (Multi-Function)
H5AN-4DM AC100-240 — Timing & Counting
ParameterValue
Delay time range0.01 Sec ~ 9999 Hrs
Timing adjustment methodUp/Down Digit Keys
Timing initiate methodInput Voltage
H5AN-4DM AC100-240 — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
H5AN-4DM AC100-240 — I/O & Contacts
ParameterValue
Contact rating @ voltage3A @ 250VAC
Contact circuit (Form)SPDT (1 Form C)
Relay typeMechanical Relay
H5AN-4DM AC100-240 — Mechanical
ParameterValue
Mounting typePanel Mount
Termination styleScrew Terminal

Product details

The H5AN-4DM AC100-240: Switching is handled by a mechanical relay rated 3A at 250VAC (SPDT Form C), so it directly drives small contactors, pilot lights, or solenoid valves without an interposer relay. The 100-240VAC supply covers line voltages across most industrial sites without a separate control transformer. Panel-mount with screw terminals — no DIN-rail adapter in the package, so plan for a panel cutout and a screwdriver for the wiring. Timing initiates on application of input voltage; no separate start signal needed.

Frequently asked questions

Where can I buy H5AN-4DM AC100-240 and how is it quoted?

The H5AN-4DM AC100-240 is sourced to order through independent distribution channels. Submit an RFQ for current availability and pricing — stock levels and lead times vary, so a quote confirms the commercial terms before you commit the BOM line.

What is the delay time range on this timer?

The H5AN-4DM AC100-240 covers 0.01 seconds to 9999 hours, programmable via up/down digit keys. That span handles everything from a short pulse delay to a multi-day cycle timer in a single unit.

What is the contact rating of H5AN-4DM AC100-240?

The output relay is rated 3A at 250VAC, SPDT (1 Form C). That is sufficient for pilot-duty control loads; for higher-current loads, use this timer to drive an external contactor.

MPN
H5AN-4DM AC100-240
