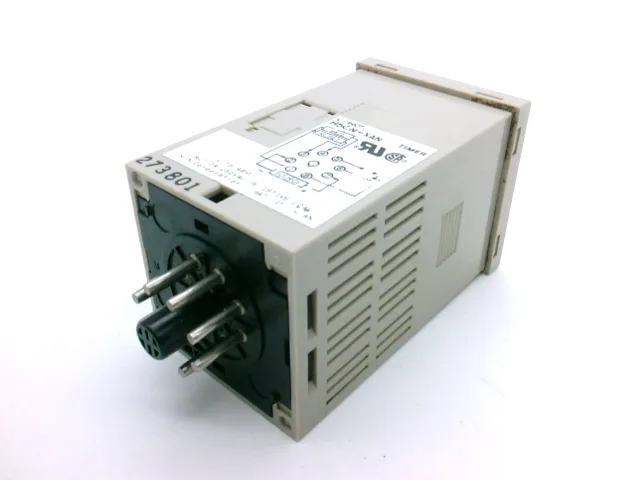

The Omron H5CN-XANS DC12-48 is an on-delay timer relay from the H5CN series, offering a solid state relay output with a delay time adjustable from 0.001 second to 9.999 seconds via up/down digit keys. It operates on a 12 to 48 VDC supply and terminates through an 8-pin octal plug-in socket. The solid state relay output means no mechanical contacts to wear out — suited for high-cycle count applications where a conventional electromechanical timer would fatigue. The 12-48 VDC supply range covers common 24 VDC control loops without needing a separate voltage regulator.
Integration Notes
Socketable mounting with an 8-pin octal base — mates to standard Omron or industry-equivalent sockets. The plug-in form factor allows quick swap without rewiring. Timing initiated by input voltage; the up/down digit keys set the delay in 0.001-second increments. No potentiometer drift — digital setting holds repeatability across temperature and aging.
