Omron H5CN-XBN AC100-240 — Electronic Timers & Counters

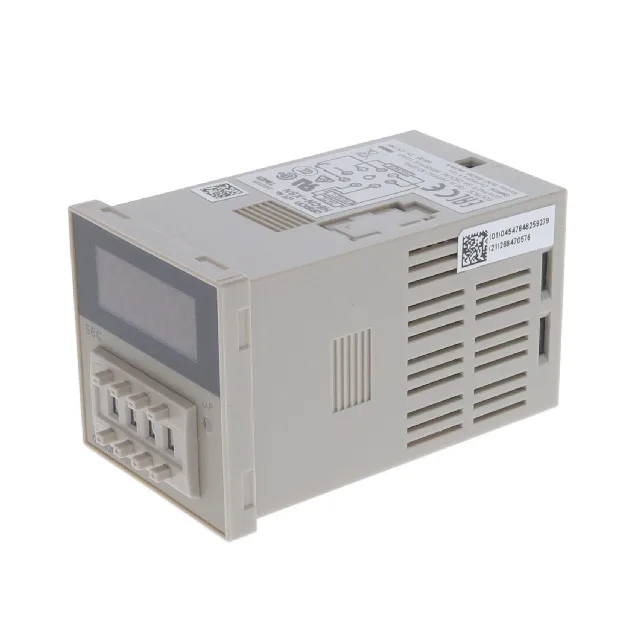

Omron H5CN-XBN AC100-240 Time Delay Relay, SPDT 3A 250VAC

MPNH5CN-XBN AC100-240
Active

Omron H5CN series, time delay relay, on-delay function, SPDT (1 Form C), 3A @ 250VAC, 0.001–99.99 sec, 100–240VAC supply, socketable 8-pin octal.

$298.83 – $332.04Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H5CN-XBN AC100-240 — Identification
ParameterValue
SeriesH5CN
H5CN-XBN AC100-240 — Function & Modes
ParameterValue
FunctionOn-Delay
H5CN-XBN AC100-240 — Timing & Counting
ParameterValue
Delay time range0.001 Sec ~ 99.99 Sec
Timing adjustment methodUp/Down Digit Keys
Timing initiate methodInput Voltage
H5CN-XBN AC100-240 — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
H5CN-XBN AC100-240 — I/O & Contacts
ParameterValue
Contact rating @ voltage3A @ 250VAC
Contact circuit (Form)SPDT (1 Form C)
Relay typeMechanical Relay
H5CN-XBN AC100-240 — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In, 8 Pin (Octal)

Product details

The Omron H5CN-XBN AC100-240 is a socketable time delay relay from the H5CN series, configured as an on-delay timer. It switches a SPDT (1 Form C) mechanical relay contact rated at 3 A at 250 VAC. The delay is set digitally via up/down digit keys from 0.001 second up to 99.99 seconds, triggered by applying the supply voltage.

The H5CN-XBN AC100-240 mounts via an 8-pin octal socket (sold separately) and is designed for DIN-rail or panel-mount installation. The 100–240 VAC supply range means it can be wired directly across a control transformer secondary without an external power supply. The 3 A contact rating handles pilot duty, small solenoid valves, or signal loads in a control cabinet — not motor starting or high-inrush loads.

Frequently asked questions

What is the contact rating of this relay?

The SPDT contact is rated at 3 A at 250 VAC. This is a general-purpose rating suitable for pilot duty and signal-level loads, not high-inrush motor circuits.

How do I get pricing and availability for the H5CN-XBN AC100-240?

Submit an RFQ through this listing. Availability and current pricing are confirmed at quote time through our independent distribution network.

MPN
H5CN-XBN AC100-240
