Omron H5CN-XCN AC100-240 — Electronic Timers & Counters

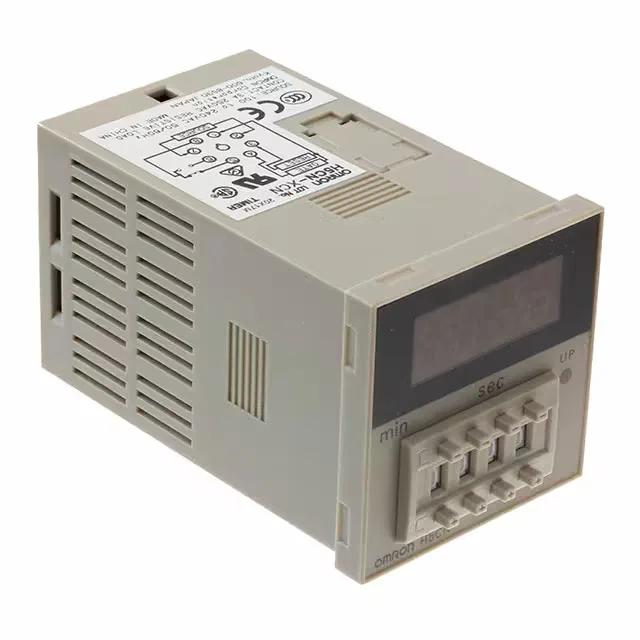

Omron H5CN-XCN AC100-240 On-Delay Timer, SPDT 3A 250VAC

MPNH5CN-XCN AC100-240

Active

Omron H5CN series, On-Delay timer relay, SPDT (1 Form C), 3A @ 250VAC, 100 ~ 240VAC supply, 1 Sec ~ 99 Min 59 Sec range, Plug In 8 Pin (Octal) termination, Up/Down Digit Keys adjustment.

$138.00Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

H5CN-XCN AC100-240 — Identification
Parameter	Value
Series	H5CN

H5CN-XCN AC100-240 — Function & Modes
Parameter	Value
Function	On-Delay

H5CN-XCN AC100-240 — Timing & Counting
Parameter	Value
Delay time range	1 Sec ~ 99 Min 59 Sec
Timing adjustment method	Up/Down Digit Keys
Timing initiate method	Input Voltage

H5CN-XCN AC100-240 — Electrical
Parameter	Value
Supply voltage	100 ~ 240VAC

H5CN-XCN AC100-240 — I/O & Contacts
Parameter	Value
Contact rating @ voltage	3A @ 250VAC
Contact circuit (Form)	SPDT (1 Form C)
Relay type	Mechanical Relay

H5CN-XCN AC100-240 — Mechanical
Parameter	Value
Mounting type	Socketable
Termination style	Plug In, 8 Pin (Octal)

Product details

The Omron H5CN-XCN AC100-240 is an on-delay timer relay from the H5CN series, providing a single-pole double-throw (SPDT, 1 Form C) output rated at 3 A at 250 VAC. The delay range spans 1 second to 99 minutes 59 seconds, set via front-panel up/down digit keys. Supply voltage is 100 to 240 VAC, and the timer initiates on application of input voltage.

The timer mounts via an 8-pin octal socket (sold separately), making it a field-replaceable drop-in for existing panel layouts. The plug-in termination style suits DIN-rail or panel-mount socket bases common in control cabinets.

Frequently asked questions

Where can I buy the H5CN-XCN AC100-240 and get a price?

The H5CN-XCN AC100-240 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
