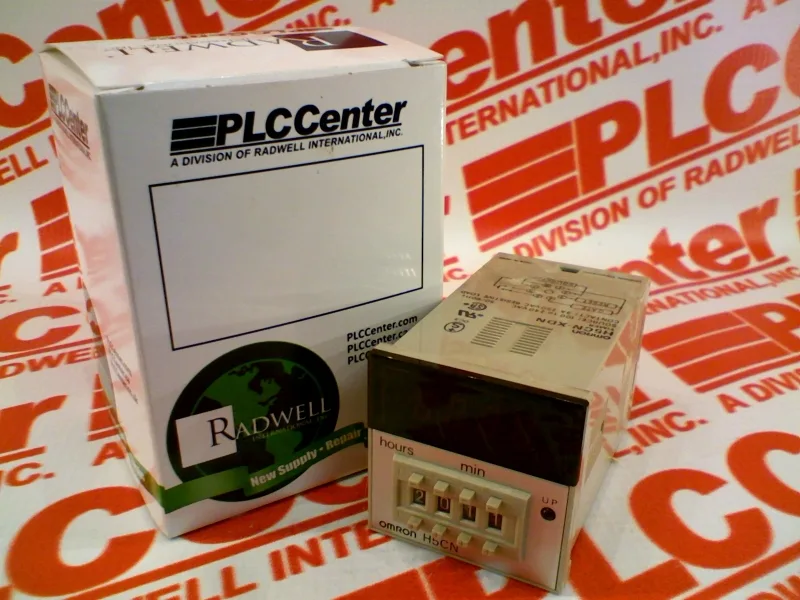

Omron H5CN-XDN AC100-240 Time Delay Relay, On-Delay, 3A SPDT

The Omron H5CN-XDN AC100-240 is a digital on-delay timer relay from the H5CN series, covering 1 Min to 99 Hrs 59 Min via up/down digit keys — no trim pots or dip switches to drift. SPDT contacts rated 3A at 250VAC handle most pilot-duty and small solenoid loads inside a panel. Supply is 100~240VAC, so it runs straight off control transformer secondary without a separate DC supply.

Socketable — panel integration note

Mounts via an 8-pin octal socket (plug-in termination), so swapping a failed unit takes seconds — no rewiring. The socket itself typically clips to DIN rail or panel; the relay body then pushes in. Keep the socket's rated voltage and temperature range in mind if the panel runs hot.
