Omron H5CN-YAN AC100-240

Omron H5CN-YAN AC100-240 Time Delay Relay, SPDT, 0.001-9.999

MPN H5CN-YAN AC100-240
Active

Omron H5CN series, On-Delay mechanical relay timer, SPDT (1 Form C), 0.001-9.999s delay range, 100-240VAC supply, 3A @ 250VAC contact rating, socketable 8-pin octal base, bulk package.

$281.69 – $788.91 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

H5CN-YAN AC100-240 specifications
ParameterValue
SeriesH5CN
TypeMechanical Relay
Supply voltage100 to 240VAC
MountingSocket
PackageBulk
Delay time0.001 Sec to 9.999 Sec
Timing initiate methodInput Voltage
Timing adjustment methodUp/Down Digit Keys

Product details

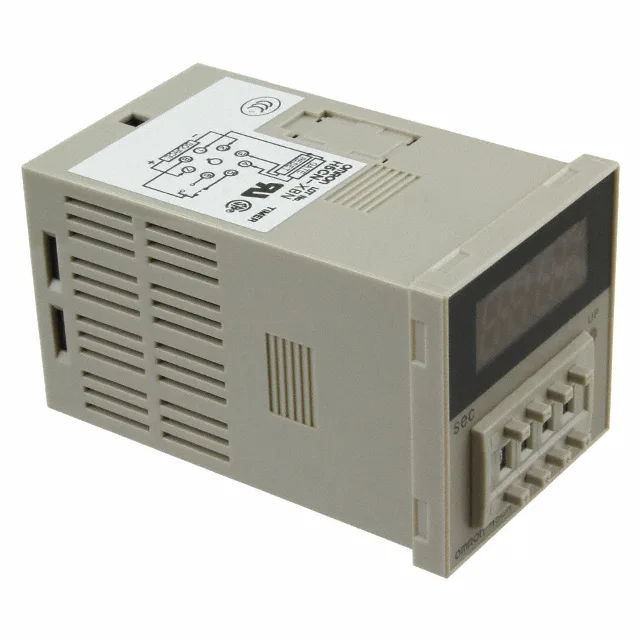

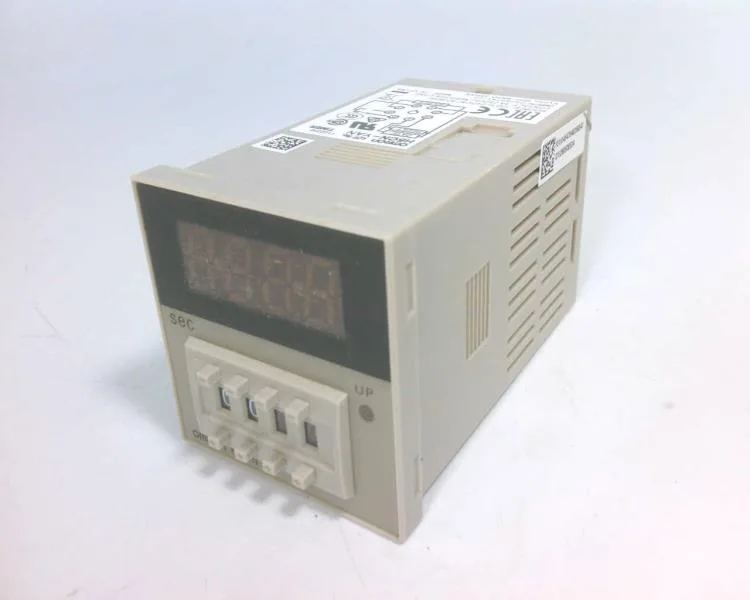

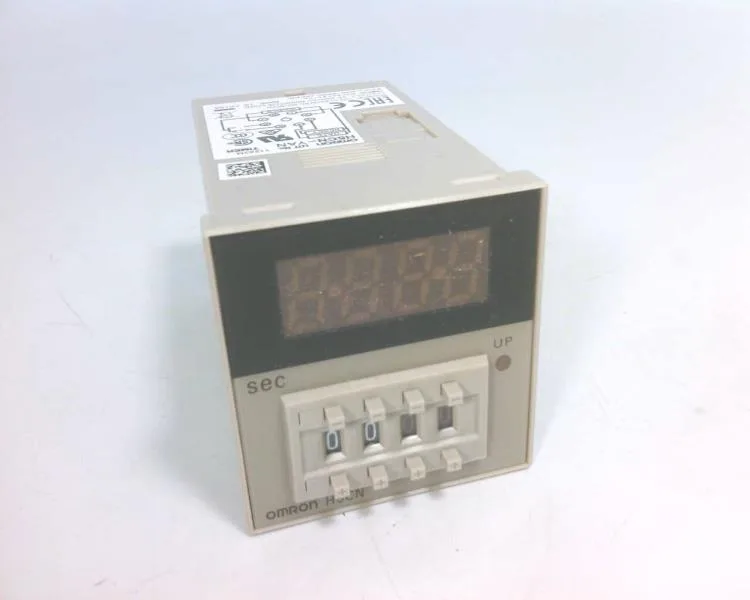

The Omron H5CN-YAN AC100-240 is a panel-mount on-delay timer relay from the H5CN series, socketable onto an 8-pin octal base. It provides a single SPDT (1 Form C) output rated at 3 A at 250 VAC, with a delay range of 0.001 to 9.999 seconds set via up/down digit keys. Supply voltage is 100 to 240 VAC, making it a drop-in replacement for existing octal-base timers in control panels without rewiring the socket.

The 3 A at 250 VAC SPDT contact rating covers pilot duty, relay coils, contactor coils, and signal lamps in typical control circuits. It is not sized for motor loads or heater banks — those belong on a separate contactor. The 0.001 to 9.999 second range with digital setting gives repeatable timing for short-cycle sequences like conveyor interlock delays, pump alternation, or compressor unload timers. The 100-240 VAC supply covers common line voltages globally without a separate control transformer.

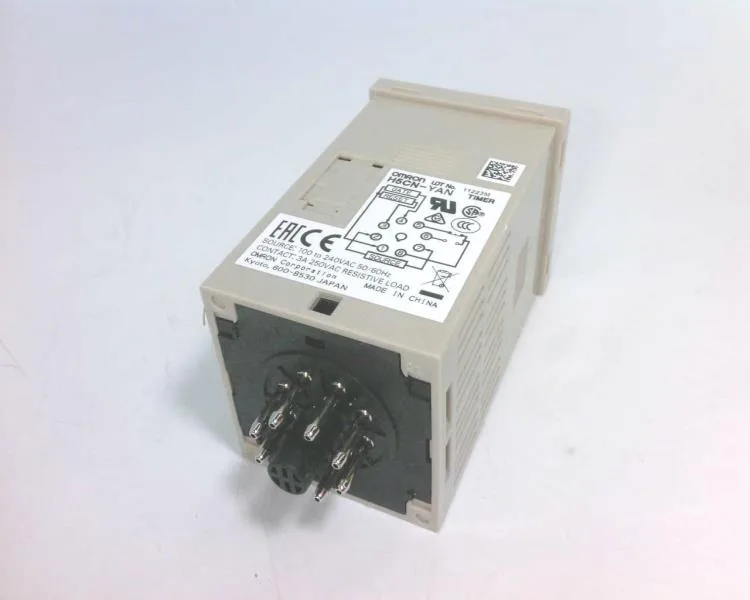

Socketable design with an 8-pin octal base — mates to standard Omron PTF08A or equivalent sockets. Termination is plug-in, so replacement takes seconds without rewiring. Timing initiate method is input voltage: apply supply to start the delay, remove it to reset.
