Omron H5CN series, On-Delay timer relay, SPDT (1 Form C), 0.001 Sec ~ 99.99 Sec delay, 3A @ 250VAC contact rating, 100 ~ 240VAC supply, Socketable octal base.
| Parameter | Value |
|---|---|
| Series | H5CN |
| Parameter | Value |
|---|---|
| Function | On-Delay |
| Parameter | Value |
|---|---|
| Delay time range | 0.001 Sec ~ 99.99 Sec |
| Timing adjustment method | Up/Down Digit Keys |
| Timing initiate method | Input Voltage |
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
| Parameter | Value |
|---|---|
| Contact rating @ voltage | 3A @ 250VAC |
| Contact circuit (Form) | SPDT (1 Form C) |
| Relay type | Mechanical Relay |
| Parameter | Value |
|---|---|
| Mounting type | Socketable |
| Termination style | Plug In, 8 Pin (Octal) |

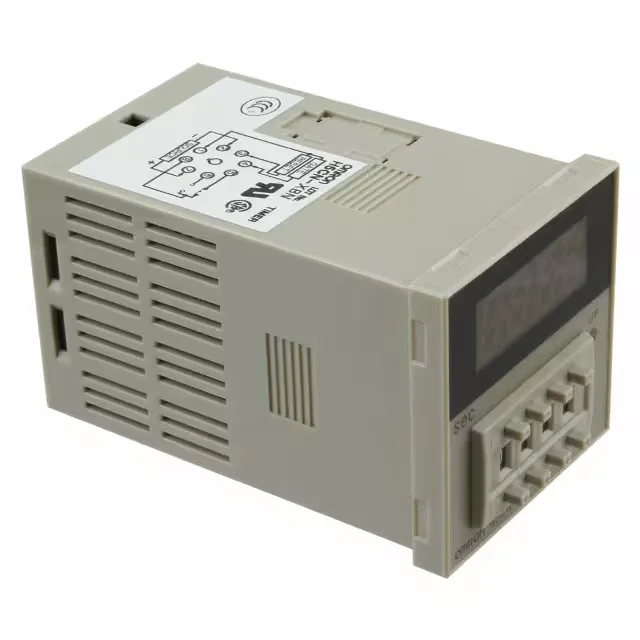

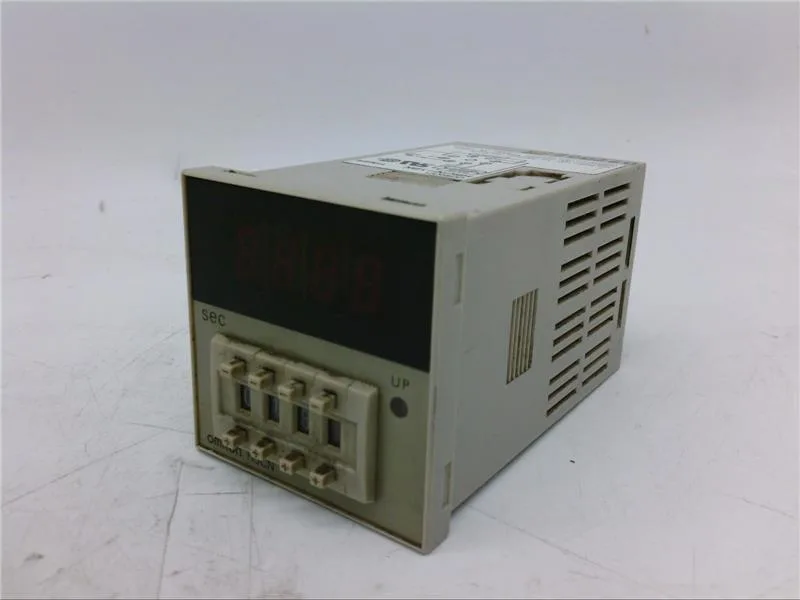

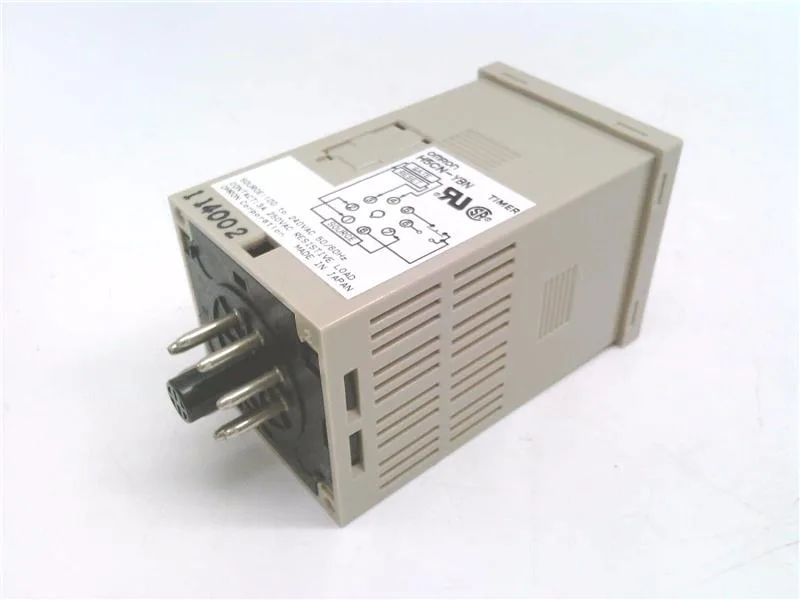

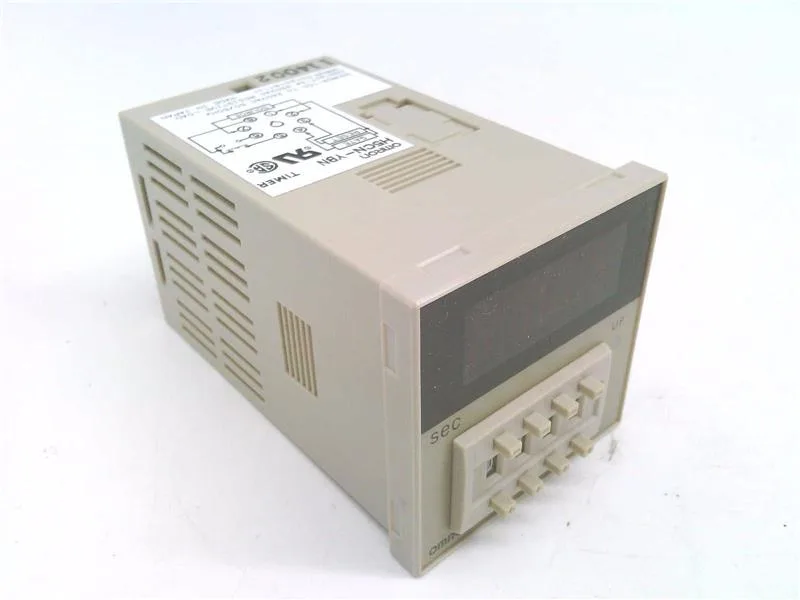

The Omron H5CN-YBN AC100-240 is an on-delay mechanical relay timer from the H5CN series, covering 0.001 to 99.99 seconds in 0.001-second steps set via up/down digit keys. It switches a SPDT (1 Form C) contact rated 3A at 250VAC, powered by 100 to 240VAC. Socketable on an 8-pin octal base, it's a direct swap for existing panel timers in control cabinets.
This part is sourced and quoted to order against an RFQ through independent distribution channels. Submit an RFQ for current availability and pricing.
The delay range is 0.001 to 99.99 seconds, set via up/down digit keys. The SPDT contact is rated 3A at 250VAC.
It requires 100 to 240VAC supply. The timing initiates on input voltage application.
