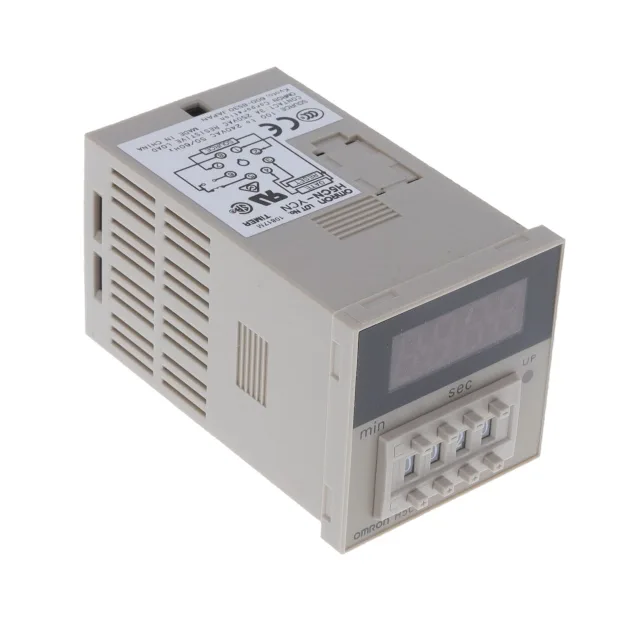

Omron H5CN-YCN AC100-240 — Electronic Timers & Counters

Omron H5CN-YCN AC100-240 On-Delay Timer, SPDT, 1s–99m59s, 3A

MPNH5CN-YCN AC100-240
Active

Omron H5CN series, on-delay timer, SPDT (1 Form C) mechanical relay, 1 Sec ~ 99 Min 59 Sec range, 100 ~ 240VAC supply, socketable 8-pin octal termination, 3A @ 250VAC contact rating.

$281.69 – $530.87Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H5CN-YCN AC100-240 — Identification
ParameterValue
SeriesH5CN
H5CN-YCN AC100-240 — Function & Modes
ParameterValue
FunctionOn-Delay
H5CN-YCN AC100-240 — Timing & Counting
ParameterValue
Delay time range1 Sec ~ 99 Min 59 Sec
Timing adjustment methodUp/Down Digit Keys
Timing initiate methodInput Voltage
H5CN-YCN AC100-240 — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
H5CN-YCN AC100-240 — I/O & Contacts
ParameterValue
Contact rating @ voltage3A @ 250VAC
Contact circuit (Form)SPDT (1 Form C)
Relay typeMechanical Relay
H5CN-YCN AC100-240 — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In, 8 Pin (Octal)

Product details

On-delay timer with digital keypad setting

The Omron H5CN-YCN AC100-240 is an on-delay timer from the H5CN series, delivering a programmable delay from 1 second up to 99 minutes 59 seconds via up/down digit keys. It switches a SPDT (1 Form C) mechanical relay rated at 3A at 250VAC, powered by a 100–240VAC supply. The 8-pin octal plug-in base mates with standard socket, making it a drop-in replacement for existing panel timers.

Integration note

Socketable — mounts into an 8-pin octal relay base (sold separately). The digital keypad eliminates trim-pot drift; set the delay in seconds or minutes via the front-panel keys. Timing initiates on application of input voltage, so wire the supply to the coil pins per the base pinout.

Frequently asked questions

Where can I buy the H5CN-YCN AC100-240?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the delay range of the H5CN-YCN AC100-240?

The delay time is adjustable from 1 second to 99 minutes 59 seconds, set via up/down digit keys on the front panel.

What is the contact rating of this timer?

The SPDT mechanical relay is rated at 3A at 250VAC.
