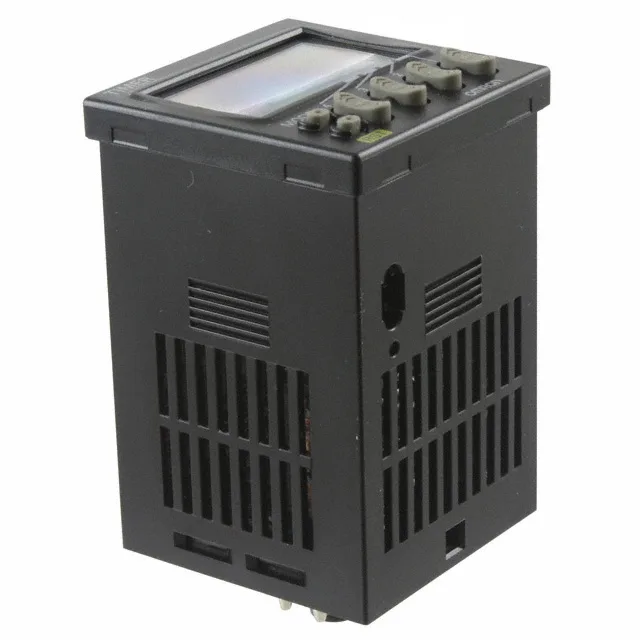

The Omron H5CX-L8-N AC100-240 is a programmable multi-function time delay relay from the H5CX series, built around a mechanical relay output. It switches a single SPDT (1 Form C) contact rated at 5A @ 250VAC — enough for direct control of small contactors, pilot lights, or solenoid valves without an interposing relay. Timing range spans 0.001 seconds to 9999 hours, set via up/down digit keys on the front panel. The unit accepts 100-240VAC supply and initiates timing on either input voltage presence or an external trigger signal. Mounts to an 8-pin octal socket — common in panel layouts where quick replacement without rewiring matters. Termination is plug-in, so a failed unit swaps in seconds.
Omron H5CX-L8-N AC100-240 SPDT Time Delay Relay, 0.001s-9999
MPNH5CX-L8-N AC100-240
Active
Omron H5CX series, programmable multi-function time delay relay, SPDT (1 Form C), 5A @ 250VAC, 100-240VAC supply, socketable 8-pin octal.
$205.75 – $228.61Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H5CX |
| Parameter | Value |
|---|---|
| Function | Programmable (Multi-Function) |
| Parameter | Value |
|---|---|
| Delay time range | 0.001 Sec ~ 9999 Hrs |
| Timing adjustment method | Up/Down Digit Keys |
| Timing initiate method | Input Voltage, Trigger Signal |
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
| Parameter | Value |
|---|---|
| Contact rating @ voltage | 5A @ 250VAC |
| Contact circuit (Form) | SPDT (1 Form C) |
| Relay type | Mechanical Relay |
| Parameter | Value |
|---|---|
| Mounting type | Socketable |
| Termination style | Plug In, 8 Pin (Octal) |
Product details
Frequently asked questions
Where can I buy H5CX-L8-N AC100-240 and how do I get a price?
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
What is the closest pin-compatible alternative to H5CX-L8-N AC100-240 in this component family?
Within the H5CX family, the H5CX-L8D-N (DC-powered variant) shares the same 8-pin octal footprint and contact rating but requires a DC supply. For AC-supplied applications, the H5CX-L8-N is the standard choice; no pin-compatible substitute exists with identical supply voltage and timing range.
What is H5CX-L8-N AC100-240's listed series (H5CX) on this component line?
It belongs to the Omron H5CX series of programmable multi-function time delay relays.
What is H5CX-L8-N AC100-240's listed circuit (SPDT (1 Form C)) on this component line?
The circuit is SPDT (1 Form C) — a single-pole double-throw contact rated at 5A @ 250VAC.
