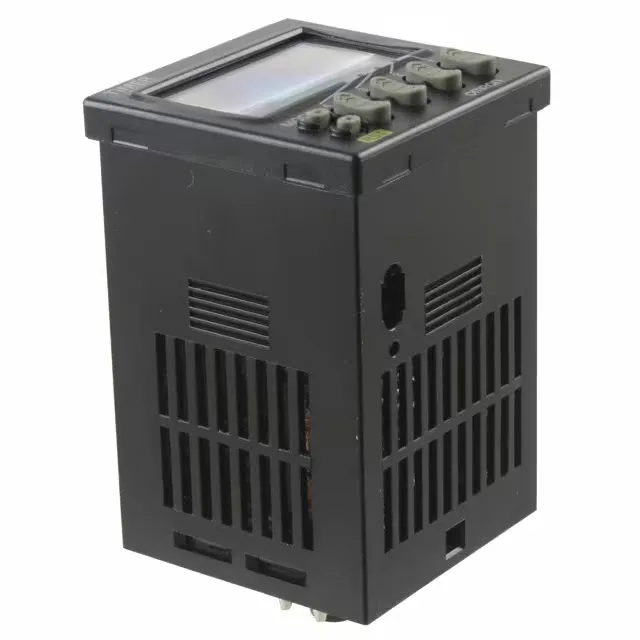

The Omron H5CX-L8D-N DC12-24/AC24 is a programmable multi-function timer relay from the H5CX series. Its delay range spans 0.001 seconds to 9999 hours, set via up/down digit keys on the front panel, covering applications from fast cycle timing to long-duration process delays. Supply voltage is dual-rated — 24 VAC or 12 to 24 VDC — giving flexibility across control panels that run either AC or DC control buses. The SPDT (1 Form C) output switches 5 A at 250 VAC, suitable for pilot-duty contactor coils, solenoid valves, and indicator loads. Termination is via an 8-pin octal plug-in base, a standard footprint for panel-mount socket installations. Timing initiates on application of input voltage or an external trigger signal, configurable through the programming menu.
Omron H5CX-L8D-N DC12-24/AC24 Timer Relay, 0.001s-9999h, SPD
MPNH5CX-L8D-N DC12-24/AC24
Active
Omron H5CX series programmable timer relay, SPDT 5A@250VAC, 24VAC/12-24VDC supply, 0.001s-9999h range, octal plug-in.
$214.62 – $238.47Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H5CX |
| Parameter | Value |
|---|---|
| Function | Programmable (Multi-Function) |
| Parameter | Value |
|---|---|
| Delay time range | 0.001 Sec ~ 9999 Hrs |
| Timing adjustment method | Up/Down Digit Keys |
| Timing initiate method | Input Voltage, Trigger Signal |
| Parameter | Value |
|---|---|
| Supply voltage | 24VAC, 12 ~ 24VDC |
| Parameter | Value |
|---|---|
| Contact rating @ voltage | 5A @ 250VAC |
| Contact circuit (Form) | SPDT (1 Form C) |
| Relay type | Mechanical Relay |
| Parameter | Value |
|---|---|
| Mounting type | Socketable |
| Termination style | Plug In, 8 Pin (Octal) |
Product details
Frequently asked questions
What is the delay range on this timer?
0.001 seconds to 9999 hours, programmable via the front-panel digit keys.
What supply voltage does it accept?
24 VAC or 12 to 24 VDC — dual-rated for AC or DC control buses.
Where can I buy the H5CX-L8D-N DC12-24/AC24?
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
What is the contact rating?
SPDT contacts rated 5 A at 250 VAC.
MPN
H5CX-L8D-N DC12-24/AC24
