What this timer does for your panel

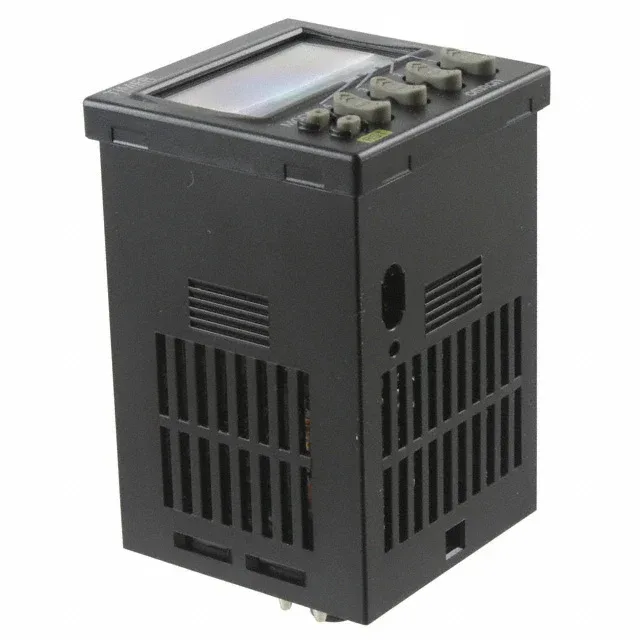

The Omron H5CX-L8S-N AC100-240 is a programmable multi-function timer relay that fits an 8-pin octal socket. Its solid-state relay output switches loads up to the rated contact capacity, and the delay range spans from 0.001 seconds to 9999 hours — covering everything from fast pulse delays to long-cycle process timers. The 100 ~ 240VAC supply means it runs directly off line voltage without a separate control transformer, which simplifies wiring in a standard control panel. Timing is set via up/down digit keys and can be initiated by either input voltage or a trigger signal. That dual-initiate method gives flexibility: you can start the delay when power is applied or when a remote dry contact closes. The socketable mounting and plug-in octal termination mean replacement takes seconds — pull the old unit, push in the new one, no rewiring.
Integration note: octal socket fit
The 8-pin octal footprint is a standard industrial timer layout. If you are replacing an existing timer in a panel, verify that the socket wiring matches the pinout — the H5CX series uses a specific pin assignment for coil and output that may differ from older electromechanical timers. The solid-state relay output has no moving contacts, so it handles frequent cycling without wear, but check the load current against the SSR rating for your application.
