The Omron H5CXADNOMI is a multi-mode time relay from the H5CX-N series, running on 24 VAC/VDC supply with screw terminals. It covers 15 operating modes — cumulative, interval, ON/OFF duty adjustable flicker, power ON-delay I and II, repeat cycle I and II, signal OFF-delay, signal ON-delay I and II, and stopwatch — so it handles most timing jobs in a panel without needing a different part for each function. The 1 ms minimum and 9999 h maximum time setting span both fast cycle timing and long-duration process holds. The 1CO contact switches 5 A at 250 VAC or 30 VDC, and up to 150 W on DC loads, which covers pilot duty, contactor coils, and small solenoid valves directly.

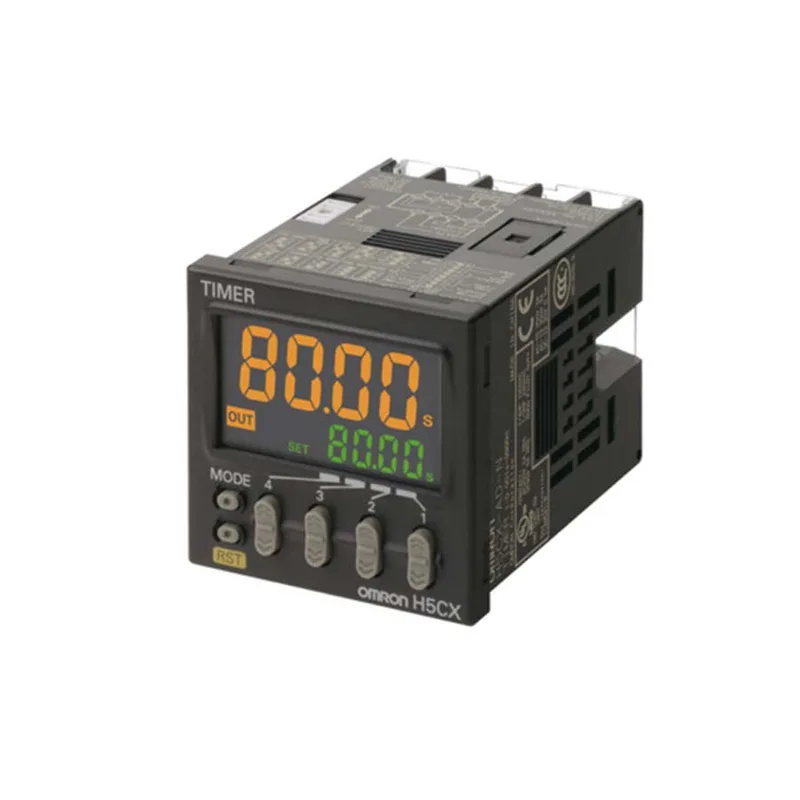

Omron H5CXADNOMI Timer Relay, H5CX-N, 24V, IP66, 1 ms-9999 h
MPNH5CXADNOMI
Omron H5CX-N series, H5CXADNOMI time lag relay, 24 VAC/VDC, screw terminal, IP66, 15 operating modes, 1 ms to 9999 h time range.
$258.07 – $266.19Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H5CX-N |
| Parameter | Value |
|---|---|
| Operation modes | Cumulative;Interval;ON / OFF Duty Adjustable Flicker;Power ON-Delay I;Power ON-Delay II Repeat Cycle I;Repeat Cycle II;Signal OFF Delay;Signal ON-Delay I;Signal ON-Delay II;Stopwatch |
| Parameter | Value |
|---|---|
| Termination type | Screw Terminal |
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP66 |
| Parameter | Value |
|---|---|
| Operating voltage, max. | 24 V |
| Operating voltage, min. | 12 V |
| Parameter | Value |
|---|---|
| Contact configuration | 1CO |
| Switching current (AC) | 5 A |
| Parameter | Value |
|---|---|
| Time setting, min. | 1 ms |
| Time setting, max. | 9999 h |
| Number of time ranges | 10 |
| Parameter | Value |
|---|---|
| Number of functions | 15 |
| Switching power - DC | 150 W |
| Switching current - DC | 5 A |
| Switching voltage - AC | 250 V |
| Switching voltage - DC | 30 V |
Product details
Frequently asked questions
Where can I buy H5CXADNOMI and how do I get a price?
The H5CXADNOMI is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.
What is H5CXADNOMI's listed series on this component line?
The H5CXADNOMI belongs to the Omron H5CX-N series of multi-mode digital timers.
What are the key ratings of H5CXADNOMI?
The H5CXADNOMI operates on 24 VAC/VDC, has a time range from 1 ms to 9999 h across 10 ranges, offers 15 operating modes, switches 5 A at 250 VAC or 30 VDC (150 W DC), has a 1CO contact configuration, screw terminals, and an IP66 protection rating.
