Omron H5CZ-L8 AC100-240 — Electronic Timers & Counters

Omron H5CZ-L8 AC100-240 Timer Relay, SPDT 5A 250VAC, 0.001s-

MPNH5CZ-L8 AC100-240

Active

Omron H5CZ Series, Programmable Multi-Function Timer Relay, SPDT (1 Form C), 5A @ 250VAC, 100~240VAC supply, 0.001 Sec ~ 9999 Hrs delay range, Socketable, 8-Pin Octal Plug-In.

$215.76 – $243.34Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

H5CZ-L8 AC100-240 — Identification
Parameter	Value
Series	H5CZ

H5CZ-L8 AC100-240 — Function & Modes
Parameter	Value
Function	Programmable (Multi-Function)

H5CZ-L8 AC100-240 — Timing & Counting
Parameter	Value
Delay time range	0.001 Sec ~ 9999 Hrs
Timing adjustment method	Up/Down Digit Keys
Timing initiate method	Input Voltage, Trigger Signal

H5CZ-L8 AC100-240 — Electrical
Parameter	Value
Supply voltage	100 ~ 240VAC

H5CZ-L8 AC100-240 — I/O & Contacts
Parameter	Value
Contact rating @ voltage	5A @ 250VAC
Contact circuit (Form)	SPDT (1 Form C)
Relay type	Mechanical Relay

H5CZ-L8 AC100-240 — Mechanical
Parameter	Value
Mounting type	Socketable
Termination style	Plug In, 8 Pin (Octal)

Product details

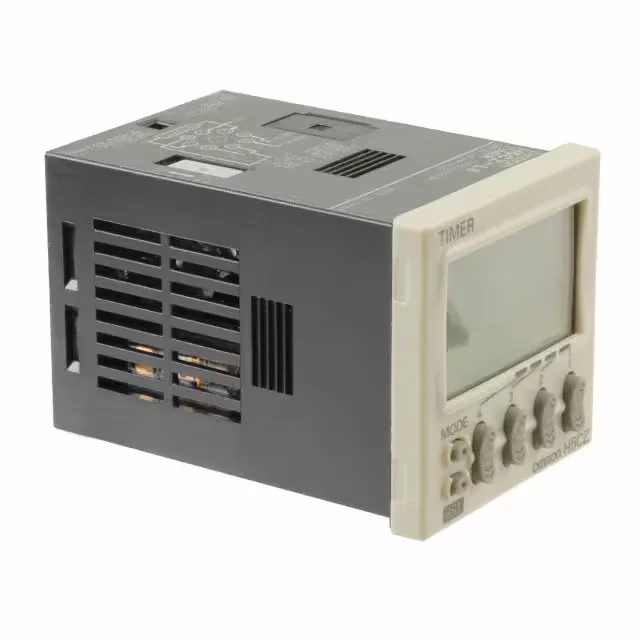

The Omron H5CZ-L8 AC100-240 is a programmable multi-function timer relay from the H5CZ series. It switches a single SPDT (1 Form C) mechanical relay contact rated 5A at 250VAC, powered by a 100~240VAC supply. The timing range spans 0.001 seconds to 9999 hours, set via up/down digit keys — wide enough for anything from a fast pulse delay to a multi-day process timer.

Socket-mount design with an 8-pin octal plug-in base. Termination is plug-in, so the timer body swaps without rewiring the panel — useful when a fault isolation call points to the timing module, not the base wiring. The SPDT contact gives one normally-open and one normally-closed set, enough for a single on-delay or off-delay function in a control circuit.
