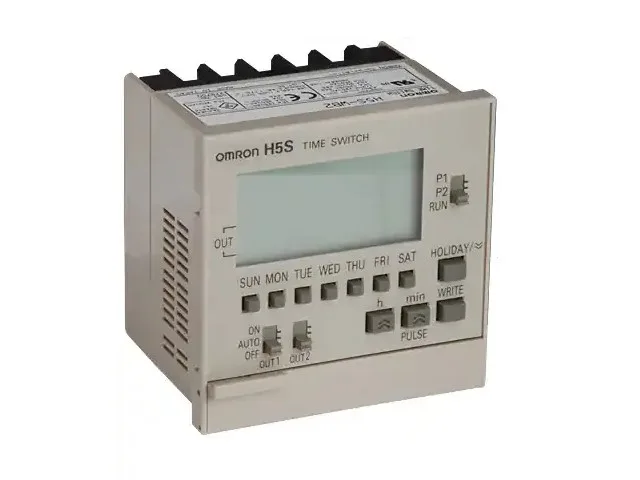

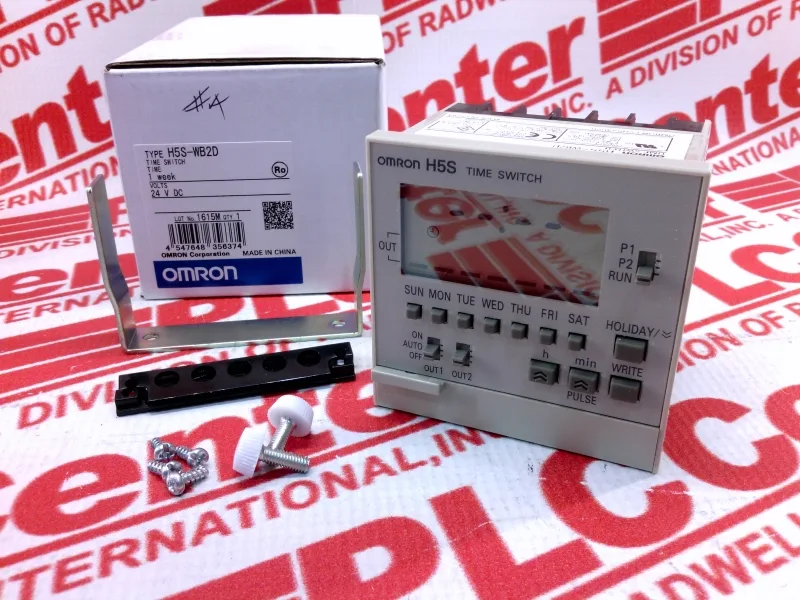

Omron H5S-WB2D

H5S-WB2D Programmable Timer Relay, 24 VDC, 15 A, 1 Min–1 Wee

MPN H5S-WB2D
Active

H5S series programmable multi-function timer relay, panel mount, 24 VDC supply, SPST-NO x 2 contacts rated 15 A at 250 VAC, delay range 1 minute to 1 week, screw terminal.

$270.00 – $354.72 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

H5S-WB2D specifications
ParameterValue
SeriesH5 S
TypeMechanical Relay
Supply voltage24 VDC
MountingPanel Mount
PackageBulk
Delay time1 Min to 1 Week
Timing initiate methodInput Voltage
Timing adjustment methodUp/Down Digit Keys

Product details

The H5S-WB2D is a panel-mount programmable timer relay from the H5S series, running on a 24 VDC supply. It offers two independent SPST-NO (1 Form A) outputs, each rated for 15 A at 250 VAC — enough to switch a small motor contactor or a bank of solenoid valves directly, without an interposing relay. The delay range spans 1 minute to 1 week, set via up/down digit keys on the front panel. Timing is initiated by applying the input voltage — no external trigger signal needed. This makes it a straightforward drop-in for time-delay sequences in packaging lines, HVAC staging, or irrigation controls where the clock starts when the panel powers up.

Mounts to a panel cutout, not a DIN rail — factor that into enclosure layout if you are retrofitting into a cabinet designed for snap-on rail hardware.

MPN
H5S-WB2D
