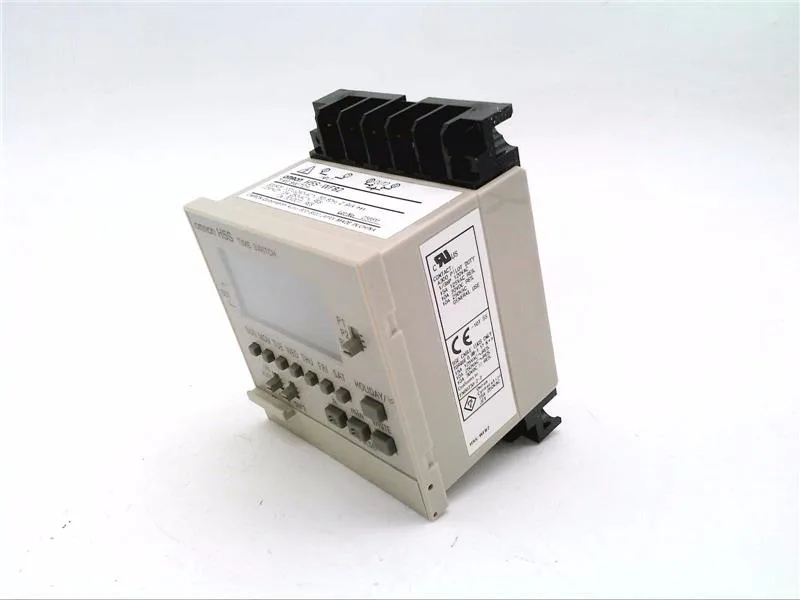

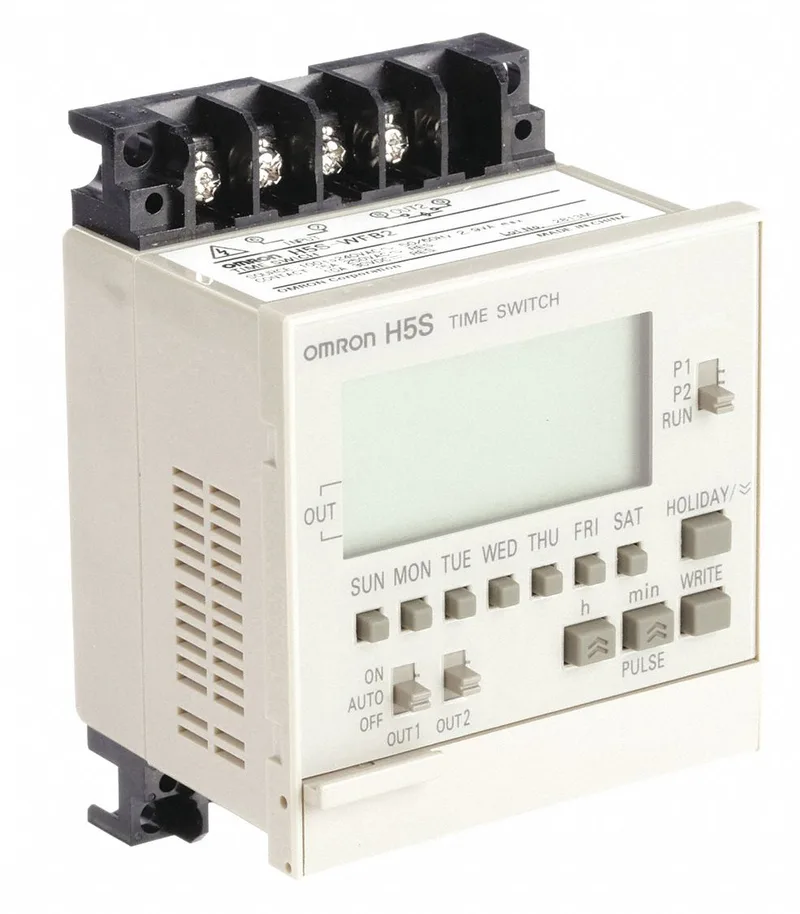

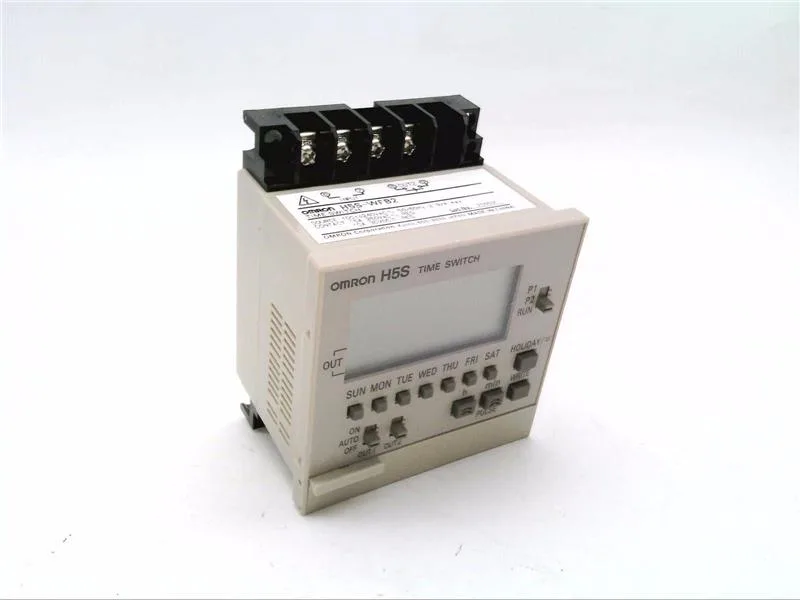

Omron H5S-WFB2
MPNH5S-WFB2
Active
RELAY TIME DELAY 1 WEEK 15A 250V
$287.02 – $434.88Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H5S |
| Applicable AC voltage ranges | 100-240V AC |
| Current rating | 15 A |
| Contact form | SPST-NO |
| Poles | 1 |
| NEMA enclosure rating | 1 |
| Mounting style | DIN Rail and Surface |
| Operating temperature - maximum | 131 °F |
| Operating temperature - minimum | 14 °F |
| Body color | Light Gray |
| Body material | Plastic |
| Overall depth | 71 mm |
All specifications
| Parameter | Value |
|---|---|
| Overall width | 72 mm |
| Display height | 1/2 in |
| Overall height | 96 mm |
| Standards | CSA C22.2 No.14; cURus; UL 508; VDE0106/P100 |
| Brand | OMRON |
| Features | Independent Day Keys; Test Mode |
| Backup time | 5 yr |
| Display qty | 1 |
| Backup device | Battery |
| Display sell UOM | EA |
| Events available | 40 |
| Number of circuits | 2 |
| Indoor (Outdoor usage) | Indoor |
| Time setting - maximum | 7 day |
| Time setting - minimum | 1 min |
| Digital timer functions | CyclePulse |
| Astronomic functionality | Not Astronomic |
| Pulse duration - maximum | 60 min |
| Pulse duration - minimum | 1 sec |
MPN
H5S-WFB2
