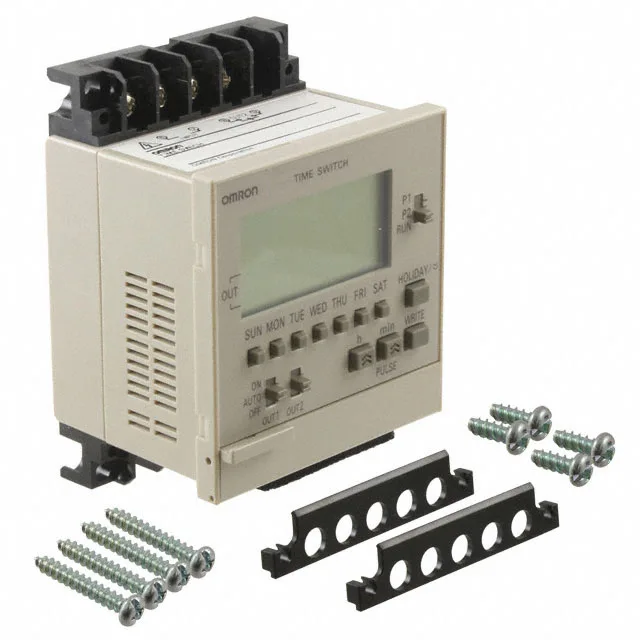

The H5S-WFB2D is a programmable multi-function time delay relay from the H5S series, running on a 24VDC supply. Its two SPST-NO (1 Form A) contacts each handle 15A at 250VAC — that's enough to directly switch small motor starters, solenoid valves, or contactor coils without an interposing relay. The delay range spans 1 minute to 1 week, set via up/down digit keys on the front face, with the timing initiated by applying input voltage. For a panel integrator: the DIN-rail clip and screw terminals mean it snaps into the same channel as a standard terminal block, no special bracket needed.
H5S-WFB2D Time Delay Relay, 24VDC, 15A, 1 Min–1 Week, DIN Ra
MPNH5S-WFB2D
Active
H5S Series programmable multi-function time delay relay, 24VDC supply, SPST-NO (1 Form A) x 2 contacts rated 15A @ 250VAC, delay range 1 minute to 1 week, DIN rail mount with screw terminals.
$333.04 – $356.83Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H5S |
| Parameter | Value |
|---|---|
| Function | Programmable (Multi-Function) |
| Parameter | Value |
|---|---|
| Delay time range | 1 Min ~ 1 Week |
| Timing adjustment method | Up/Down Digit Keys |
| Timing initiate method | Input Voltage |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Contact rating @ voltage | 15A @ 250VAC |
| Contact circuit (Form) | SPST-NO (1 Form A) x 2 |
| Relay type | Mechanical Relay |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Screw Terminal |
Product details
Frequently asked questions
Where can I buy H5S-WFB2D and how is it quoted?
The H5S-WFB2D is sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at the time of quote.
What is the delay time range on H5S-WFB2D?
The delay time is programmable from 1 minute up to 1 week, set using the front-panel up/down digit keys. Timing starts when input voltage is applied.
What is the contact rating and circuit configuration?
Two SPST-NO (1 Form A) contacts, each rated 15A at 250VAC. The mechanical relay type uses screw terminals for wiring.
MPN
H5S-WFB2D
