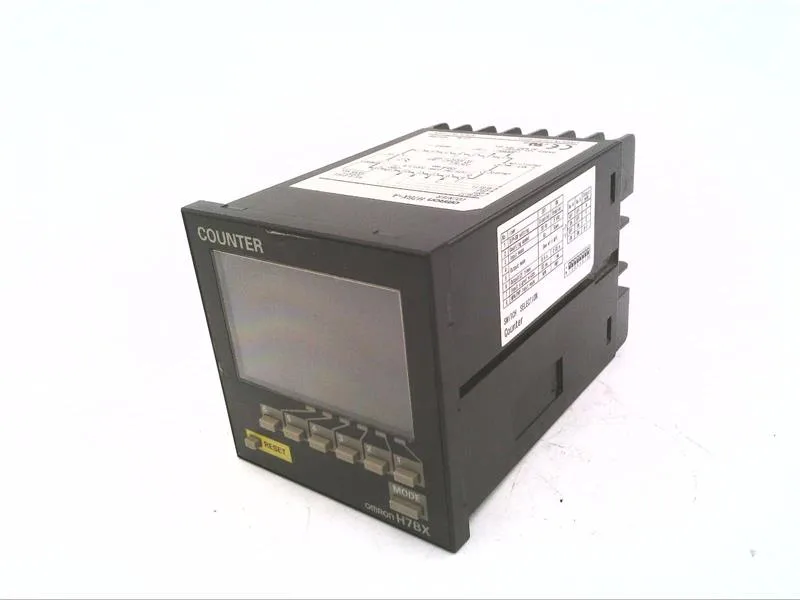

Omron H7BX-A
MPNH7BX-A
Multifunction Counter LCD 6 Digits 240V Screw Terminal
$275.08 – $676.87Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage max | 240 V |
| Voltage min | 100 V |
| Mounting | Flush Mount |
| Terminal_type | Screw Terminal |
| Temp operating max | 55 °C |
| Temp operating min | -10 °C |
| Depth | 100 |
| Width | 68 |
| Height | 13.5 |
| IP rating | IP54 |
| Count_mode | Increment;Decrement;Command;Individual;Quadrature |
| Input_type | NPN;PNP;Voltage |
| Reset method | External;Automatic;Manual |
| Backlighting | Yes |
| Display_type | LCD |
| Number of digits | 6 Digits |
| Counting capacity max. max | 999999 |
| Counting capacity min. min | -99999 |
MPN
H7BX-A
