H7CN-XHN-AC100-240

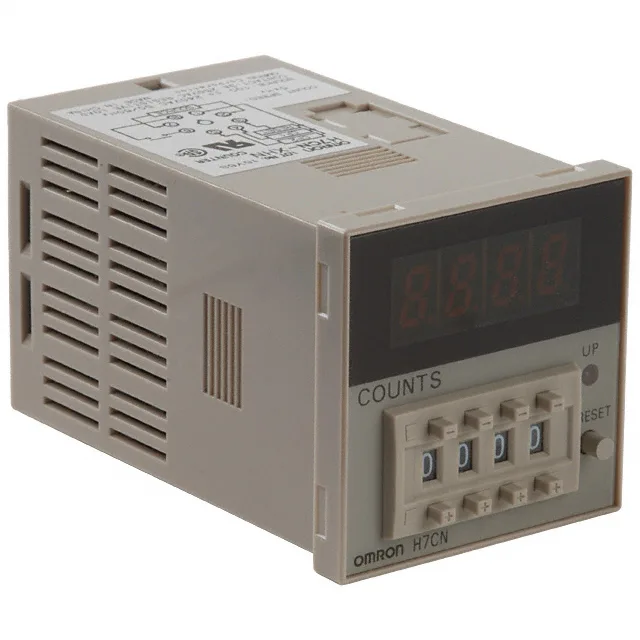

Omron H7CN-XHN AC100-240
MPNH7CN-XHN AC100-240
Obsolete
COUNTER LED 4 CHAR 100-240V PNL
$214.63 – $477.22Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | H7CN |
Function & Modes
| Parameter | Value |
|---|---|
| Device type | Preset |
| Operating mode | Up |
Timing & Counting
| Parameter | Value |
|---|---|
| Count rate | 5kHz |
| Reset method | External, Front Panel |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
I/O & Contacts
| Parameter | Value |
|---|---|
| Input type | No Voltage |
| Output type | Relay |
Display
| Parameter | Value |
|---|---|
| Display type | LED - Red Characters |
| Characters per row | 4 |
| Character height | 0.314" (8.00mm) |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Panel cutout dimensions | Square - 45.00mm x 45.00mm |
| Termination style | Plug In, 8 Pin (Octal) |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C~55°C |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0.331 lb (150.14 g) |
MPN
H7CN-XHN AC100-240
