Omron H7CX-A114D1-N DC12-24/AC24 preset/totalizer counter, 24 V supply, 4-digit LCD, relay output, IP66, panel mount, 11-pin octal plug-in, discontinued.
| Parameter | Value |
|---|---|
| Series | H7CX |
| Parameter | Value |
|---|---|
| Device type | Preset, Totalizer |
| Operating mode | Up, Down, Command, Individual, Quadrature |
| Parameter | Value |
|---|---|
| Count rate | 30Hz, 5kHz |
| Reset method | External, Front Panel, Programmable |
| Parameter | Value |
|---|---|
| Supply voltage | 24VAC, 12 ~ 24VDC |
| Parameter | Value |
|---|---|
| Input type | No Voltage, Voltage |
| Output type | Relay |
| Parameter | Value |
|---|---|
| Display type | LCD - Dual Color Characters, Backlight |
| Characters per row | 4, 4 |
| Character height | 0.472" (12.00mm), 0.236" (6.00mm) |
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Panel cutout dimensions | Square - 45.00mm x 45.00mm |
| Termination style | Plug In, 11 Pin (Octal) |
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C ~ 55°C |
| Ingress protection (IP) | IP66 - Dust Tight, Water Resistant |

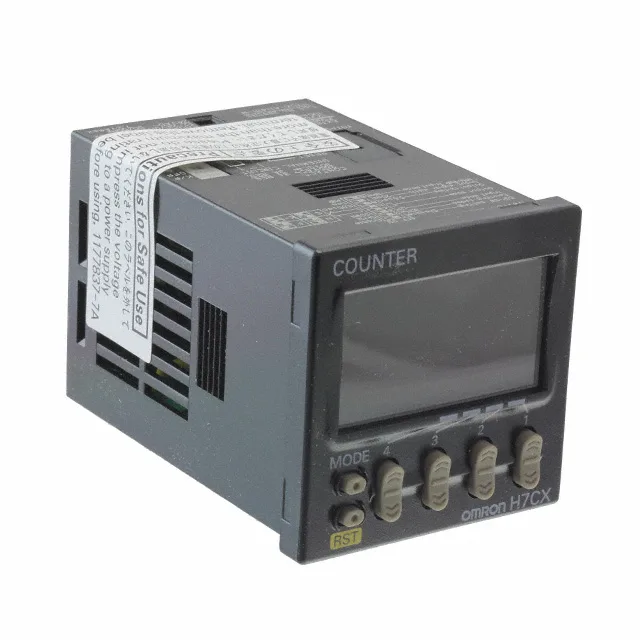

The H7CX-A114D1-N DC12-24/AC24 is an Omron H7CX preset/totalizer counter running on a 24 V supply, with a 4-character LCD display and a relay output. It accepts no-voltage or voltage inputs at count rates of 30 Hz or 5 kHz and is sealed to IP66 for panel-mount use.
