Omron H7CX-ASD-N DC12-24 — Electronic Timers & Counters

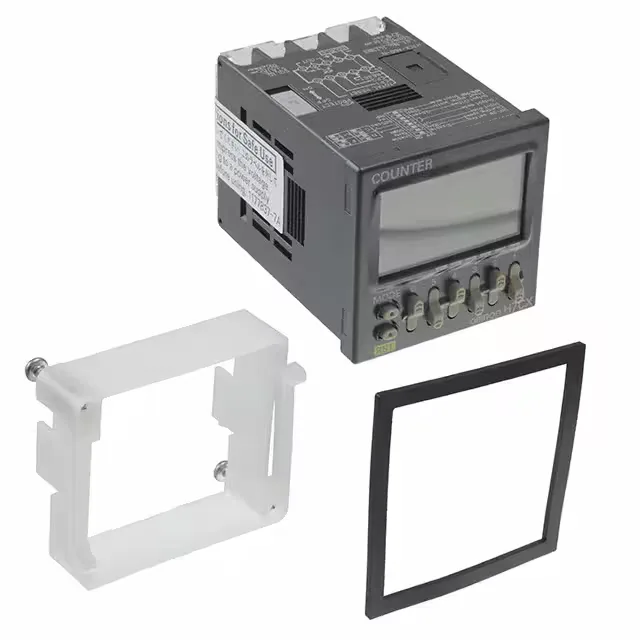

Omron H7CX-ASD-N DC12-24

MPNH7CX-ASD-N DC12-24
Active

COUNTER LCD 6 CHAR 12-24V PNL MT

$266.58 – $703.00Ref. price · indicative, final on quote
Omron H7CX-ASD-N DC12-24 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H7CX-ASD-N DC12-24 — Identification
ParameterValue
SeriesH7CX
H7CX-ASD-N DC12-24 — Function & Modes
ParameterValue
Device typePreset, Totalizer
Operating modeUp, Down, Command, Individual, Quadrature
H7CX-ASD-N DC12-24 — Timing & Counting
ParameterValue
Count rate30Hz, 5kHz
Reset methodExternal, Front Panel, Programmable
H7CX-ASD-N DC12-24 — Electrical
ParameterValue
Supply voltage12 ~ 24VDC
H7CX-ASD-N DC12-24 — I/O & Contacts
ParameterValue
Input typeNo Voltage, Voltage
Output typeSolid State
H7CX-ASD-N DC12-24 — Display
ParameterValue
Display typeLCD - Dual Color Characters, Backlight
Characters per row6, 6
Character height0.394" (10.00mm), 0.236" (6.00mm)
H7CX-ASD-N DC12-24 — Mechanical
ParameterValue
Mounting typePanel Mount
Panel cutout dimensionsSquare - 45.00mm x 45.00mm
Termination styleScrew Terminal
H7CX-ASD-N DC12-24 — Environmental
ParameterValue
Operating temperature range-10°C ~ 55°C
Ingress protection (IP)IP66 - Dust Tight, Water Resistant
MPN
H7CX-ASD-N DC12-24
