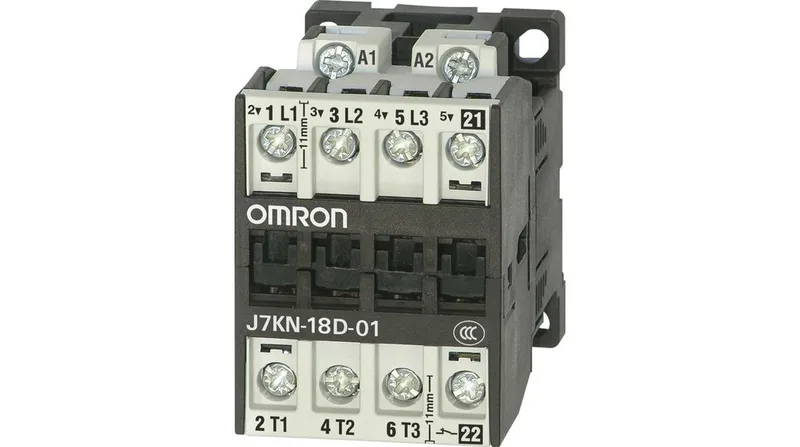

Omron J7KN18D0124

J7KN18D0124 Contactor, 3NO, 24VAC, 18A, 7.5kW, DIN Rail

MPN J7KN18D0124

J7KN series, 3-pole contactor, 24 V AC coil, 18 A AC switching current, 7.5 kW switching power, DIN rail or screw mount.

$97.90 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

J7KN18D0124 specifications
ParameterValue
SeriesJ7KN
Poles3
MountingDIN Rail, Screw

Product details

The J7KN18D0124 is a 3-pole contactor from the J7KN series, rated for 18 A AC switching current and 7.5 kW switching power at 690 V AC. The coil pulls in at 24 V AC, so it's a straight fit into a standard 24 V control transformer circuit common in panel builds. With 3 normally-open main contacts and one normally-closed auxiliary, it handles motor starting, resistive heating, or lighting contactor duty without needing an extra aux block for basic feedback.

Mounting and termination

Termination is screw-type, so no special tooling needed; strip and torque per the nameplate values.

MPN
J7KN18D0124
