Omron J7KN18D1024

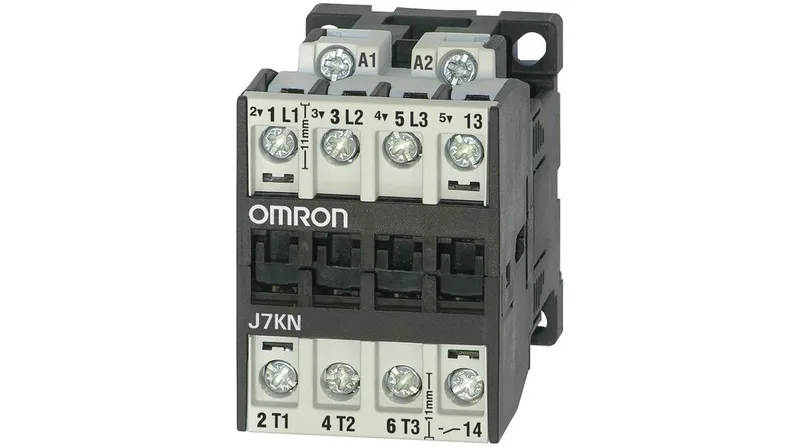

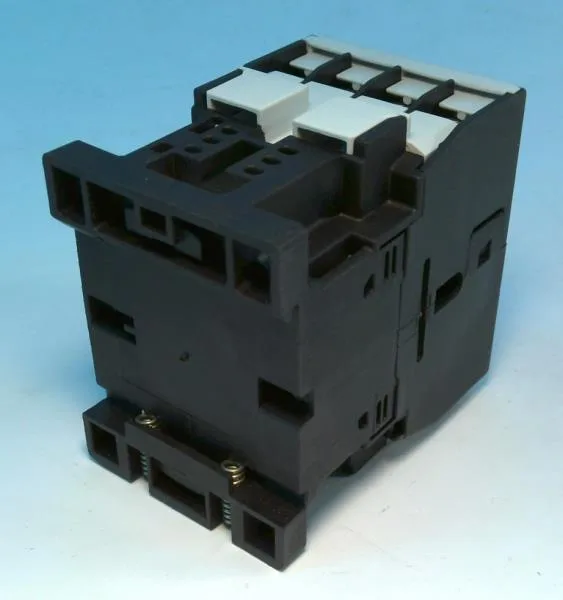

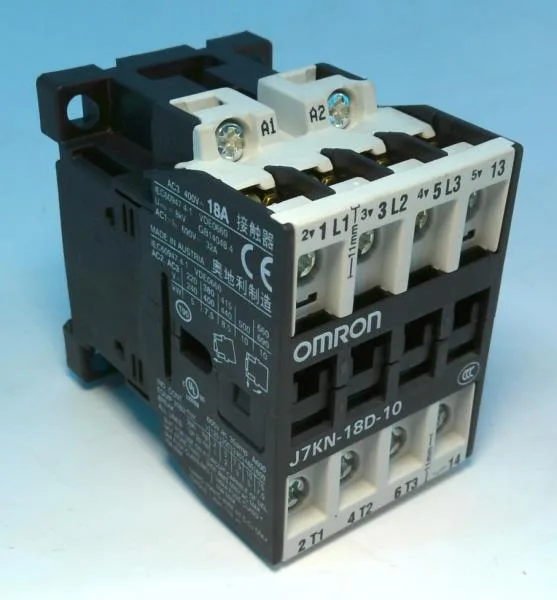

J7KN18D1024 Power Contactor, 3NO, 24V AC Coil, 18A, 7.5kW

MPN J7KN18D1024

J7KN series power contactor, 3-pole 3NO, 24V AC coil, 18A switching current, 7.5 kW at 400V AC, screw terminals, DIN rail mount.

$32.64 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

J7KN18D1024 specifications
ParameterValue
SeriesJ7KN
Poles3
MountingDIN Rail

Product details

The J7KN18D1024 is a 3-pole power contactor rated for 18 A switching current and 7.5 kW at 400 V AC — sized for a 15 HP motor load on a 400 V three-phase line. The 24 V AC coil keeps the control circuit isolated from the power side, standard for panel builders wiring through a PLC or relay output. Screw terminals accept up to 4 mm² stranded conductors; torque to 1.2 Nm per the manufacturer's spec.

Integration Notes

The 3NO main contacts handle the motor circuit; the integrated 1NO auxiliary contact provides feedback to the PLC or status lamp without an add-on block. Wire the coil from a 24 V AC control transformer — verify the transformer VA rating covers the inrush (typically 7–8 VA for this size). Screw terminals are standard for panel wiring; no special crimp tool needed beyond a screwdriver. If derating for ambient above 40 °C, reduce the 18 A continuous rating by 20% per the manufacturer's thermal curve.

MPN
J7KN18D1024
