Omron J7KN22D10110 — Contactors

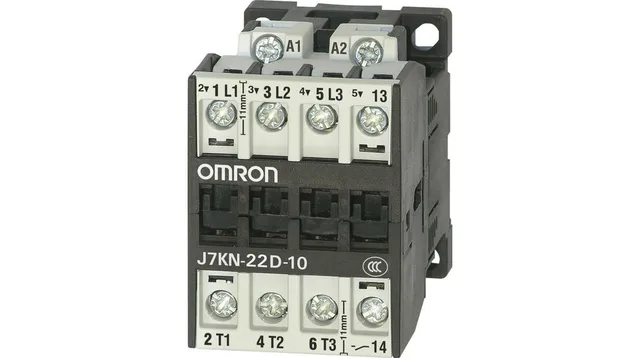

J7KN22D10110 Contactor, 3NO, 22A AC-3, 110V Coil, DIN Rail

MPNJ7KN22D10110

J7KN series contactor, 3-pole, 3NO main contacts, 22 A AC-3 switching current, 110 V AC coil, 11 kW rated motor power, DIN rail or screw mount, screw terminals.

$45.85 – $89.29Ref. price · indicative, final on quote
Omron J7KN22D10110 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

J7KN22D10110 — Specifications
ParameterValue
Poles3
SeriesJ7KN
HP rating15
MountingDIN Rail Mount;Screw
Termination typeScrew Terminal
Coil voltage - AC110 V
Switching power - AC11 kW
Contact configuration3NO
Switching current - AC22 A
Switching current - DC2.5 A
Switching voltage - AC690 V
Switching voltage - DC220 V
Auxiliary contact configuration1NO

Product details

22 A AC-3 contactor with 110 V AC coil

The J7KN22D10110: Its AC-3 switching current is rated at 22 A, which corresponds to an 11 kW motor-switching capability at 400 V — the rating that governs real motor loads, not the resistive AC-1 figure. The coil is wound for 110 V AC, a common control voltage in industrial panels across North America and parts of Europe.

DIN rail or screw-mount panel fit

The screw terminals accept up to the rated conductor cross-section without lug adapters — a straightforward termination for the panel wireman.

Frequently asked questions

How can I order J7KN22D10110 or check availability?

The J7KN22D10110 is quoted to order against your BOM quantity.

What are the main contact and auxiliary contact configurations on J7KN22D10110?

The J7KN22D10110 has 3 normally-open main contacts and 1 normally-open auxiliary contact. The 3NO main poles handle the motor circuit; the 1NO auxiliary provides a feedback or interlock signal for the control logic.

MPN
J7KN22D10110
