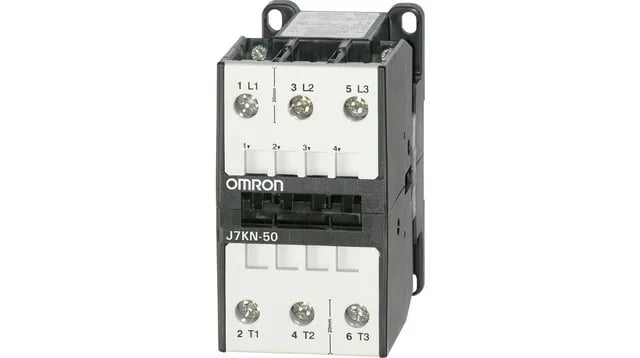

Omron J7KN series, J7KN5024 contactor, 3-pole 3NO, 24 VAC coil, 50 A AC switching current, 22 kW / 30 HP motor rating, DIN rail and screw mount, screw terminals.
| Parameter | Value |
|---|---|
| Poles | 3 |
| Series | J7KN |
| HP rating | 30 |
| Mounting | DIN Rail Mount;Screw |
| Termination type | Screw Terminal |
| Coil voltage - AC | 24 V |
| Switching power - AC | 22 kW |
| Contact configuration | 3NO |
| Switching current - AC | 50 A |
| Switching current - DC | 5 A |
| Switching voltage - AC | 690 V |
| Switching voltage - DC | 220 V |
The J7KN5024 is a 3-pole contactor with a 24 VAC coil, rated for 50 A AC switching current at 690 V AC — enough to handle a 30 HP or 22 kW motor load in AC-3 duty. On DC loads the same contacts switch up to 5 A at 220 V DC, so it covers smaller DC brake or solenoid circuits within the same panel.
Screw terminals on the power and coil connections: wire it with ring or fork lugs and torque per the marking on the contactor body.
The evidence does not list specific compliance certificates (RoHS, REACH, UL, IEC) for this part number. Request the manufacturer's declaration at RFQ time.
