90 A AC switching current — what it means for motor control

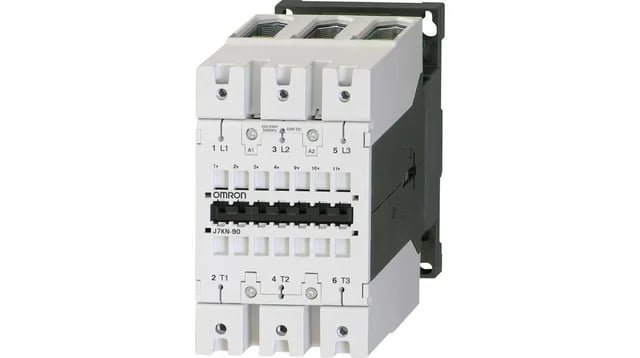

The J7KN90230 is a 3-pole contactor rated for 90 A AC switching current and 45 kW switching power at 690 V AC. That 90 A figure is the AC-3 duty rating — the current it can make and break across inductive motor loads without welding the contacts. For a 60 HP motor at 480 V, this contactor sits comfortably within the NEC ampacity envelope, leaving headroom for inrush during starting. The DC switching side is rated 7 A at 220 V — a secondary spec, but one that matters if the contactor breaks a DC brake coil or a control circuit. The AC-3 rating is the one that governs the motor branch circuit.
Mounting and termination — DIN rail or screw panel
Mounting is dual-mode: DIN rail or screw. The DIN rail footprint snaps onto a standard 35 mm rail; the screw-mount option uses the same base plate for panel-mount applications where vibration or service access demands a bolted-down contactor. Termination is screw terminals — the wire-clamp torque is consistent across the J7KN family, so a panel builder can standardise on one driver bit.
Lifecycle and sourcing reality — mature, not discontinued
The 230 V AC coil is a common control voltage across industrial panels in Europe and Asia — 50/60 Hz compatible. If your panel runs 400 V control circuits, this unit won't pull in; the coil voltage is fixed and not field-selectable.
