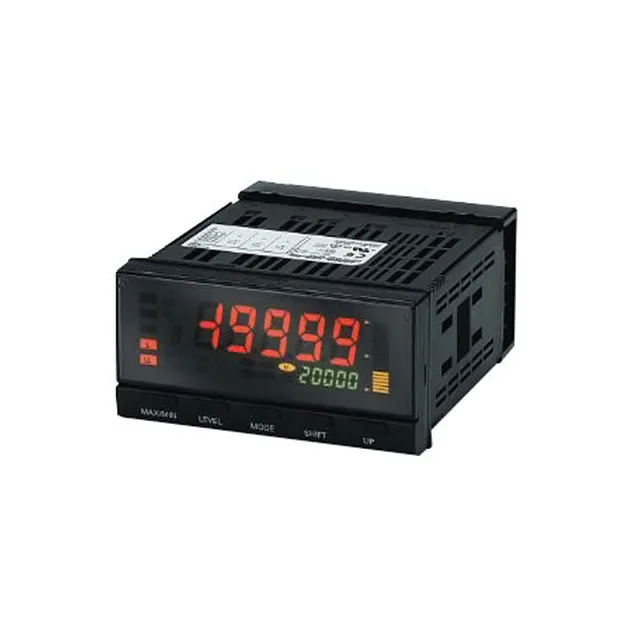

Omron K3HB-XAA 100-240VAC

Omron K3HB-XAA 100-240VAC Process Meter, 0-10A, IP66

MPN K3HB-XAA 100-240VAC
Active

Omron K3HB-X series, Process Meter, K3HB-XAA 100-240VAC, 0-10A measuring range, 100-240VAC supply, IP66 front panel, LCD dual-color display.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K3HB-XAA 100-240VAC specifications
ParameterValue
SeriesK3HB-X
Output signalOption Cards Available
Product typeProcess Meter
Supply voltage100 to 240VAC
IP ratingIP66
MountingPanel Mount
Measuring range0 to 10 A
Temp operating max55 °C
Temp operating min-10 °C
Weight0.662 lb (300.28 g)
PackageBulk

Product details

Panel fit and display readout

The Omron K3HB-XAA 100-240VAC is a panel-mount process meter from the K3HB-X series, accepting a 0-10A input and powered by a 100-240VAC supply. The LCD dual-color backlit display shows two rows of five characters each — the main readout at 14.20 mm height and a secondary line at 4.90 mm — letting you monitor process value and a scaled engineering unit or setpoint simultaneously. The IP66-rated front panel (dust-tight and protected against hose-directed water) means this meter can be mounted into a washdown-rated enclosure door without needing a separate cover. The rectangular panel cutout of 92.00 mm x 45.00 mm is a standard 1/8 DIN footprint, so it drops into existing punch patterns without rework.

The meter accepts optional plug-in cards (sold separately) for output types such as relay, transistor, analog retransmission, or communications. This modularity means the base unit stays the same across different panel specs; you only swap the option card to match the control signal requirement.

Termination and environment

Screw-terminal connections on the rear panel accept stranded or solid wire — no special crimp tool needed for field wiring.
