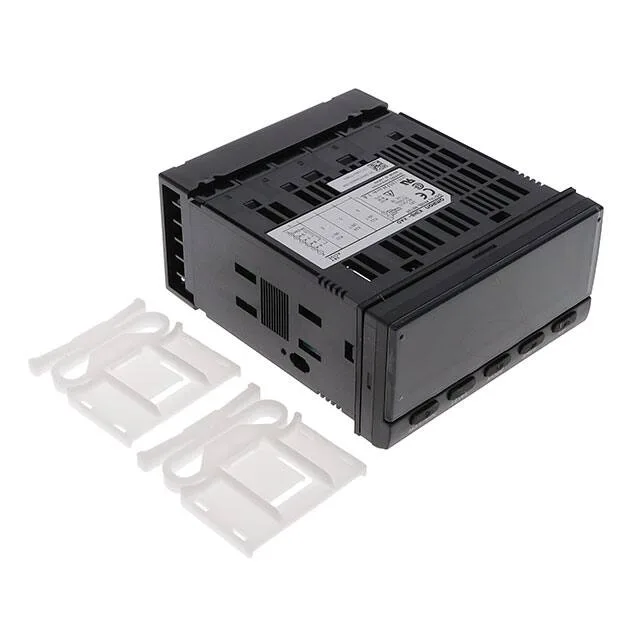

Omron K3HB-XAD 24VAC/VDC

Omron K3HB-XAD 24VAC/VDC Process Meter, ±199.99mA, IP66

MPN K3HB-XAD 24VAC/VDC
Active

Omron K3HB-X series, Process Meter, ±199.99mA, 24VAC/VDC, LCD dual-color backlight, IP66, panel mount, screw terminal.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K3HB-XAD 24VAC/VDC specifications
ParameterValue
SeriesK3HB-X
Output signalOption Cards Available
Product typeProcess Meter
Supply voltage24 VAC/DC
IP ratingIP66
MountingPanel Mount
Measuring range±199.99 mA
Temp operating max55 °C
Temp operating min-10 °C
Weight0.662 lb (300.28 g)
PackageBulk

Product details

The Omron K3HB-XAD 24VAC/VDC is a panel-mount process meter from the K3HB-X series, reading process signals in the ±199.99mA range on a dual-color backlit LCD. The 24VAC/VDC supply means it works in both AC and DC control circuits without a separate power module — useful for panels with mixed supplies. The IP66 rating on the front bezel lets it handle washdown environments; the rear screw terminals are not sealed, so the panel cutout gasket is what keeps moisture out of the enclosure.

Panel integration specifics

Mounts into a rectangular panel cutout of 92.00mm x 45.00mm — a standard 1/8 DIN footprint, so it drops into existing cutouts without rework.

Display and readability

Dual-row LCD shows 5 characters per row; the main reading uses 0.560" (14.20mm) digits, the secondary row uses 0.192" (4.90mm) digits. The dual-color backlight (red/green) can be assigned to alarm or range conditions — a commissioning detail worth noting if the panel already uses color-coded status lamps.

No end-of-life notification, no successor part number published.
