Omron K3MALC100240AC — Process / Temperature Controllers

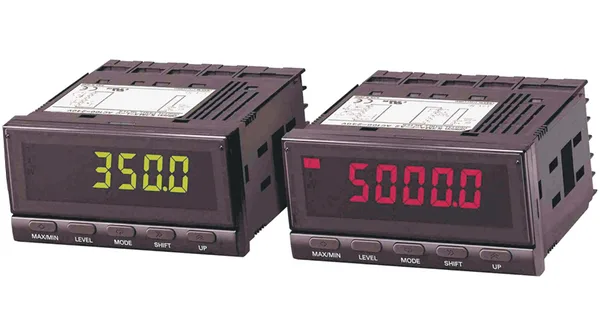

Omron K3MALC100240AC Digital Temperature Display, 100-240 VA

MPNK3MALC100240AC

Omron K3MA-L Series, Digital temperature display, AC: 100... 240 V, Thermocouple;RTD inputs, 4-digit LCD, 14.2 mm character height.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

K3MALC100240AC — Identification
ParameterValue
SeriesK3MA-L Series
K3MALC100240AC — Display
ParameterValue
Display typeLCD
K3MALC100240AC — Other specifications
ParameterValue
Meter typeDigital
Power supplyAC: 100 ... 240 V
Mounting depth85 mm
Meter functionsThermocouple;RTD
Character height14.2 mm
Number of digits4 Digits
Panel Cut-Out width92 mm
Panel Cut-Out height45 mm
Other measuring rangesThermocouple K: -200 ... 1300°C;Pt100: -200 ... 850°C;Thermocouple J: -100 ... 850°C;Thermocouple T: -200 ... 400 °C;Thermocouple E: 0 ... 600°C;Thermocouple L: -100 ... 850°C;Thermocouple U: -200 ... 400°C;Thermocouple N: -200 ... 1300 °C;Thermocouple R: 0 ... 1700°C;Thermocouple S: 0 ... 1700°C;Thermocouple B: 100 ... 1800°C;JPt100: -200 ... 500°C

Product details

The Omron K3MALC100240AC is a K3MA-L Series digital panel meter built to display temperature from thermocouple or RTD sensors. It accepts a universal AC supply of 100... 240 V and shows the reading on a 4-digit LCD with 14.2 mm characters — legible across a panel face. The meter handles thermocouple types K, J, T, E, L, U, N, R, S, B, plus Pt100 and JPt100 RTDs, covering ranges from -200 °C up to 1800 °C depending on the sensor. That's a single SKU that can replace a drawer full of dedicated indicators if your line runs multiple probe types.

It fits a standard 92 mm x 45 mm panel cutout with a mounting depth of 85 mm behind the panel. That's another SKU I don't need to second-guess on cutout dimensions — it drops into the same hole as other K3MA family meters.

Frequently asked questions

What thermocouple and RTD types does this meter support?

It supports thermocouple types K, J, T, E, L, U, N, R, S, B, plus Pt100 and JPt100 RTDs. Temperature ranges span from -200 °C to 1800 °C depending on the sensor type selected.

What is the panel cutout size for this meter?

The required panel cutout is 92 mm wide by 45 mm high. Mounting depth behind the panel is 85 mm.
