Omron K8AB-VS2 100/115VAC

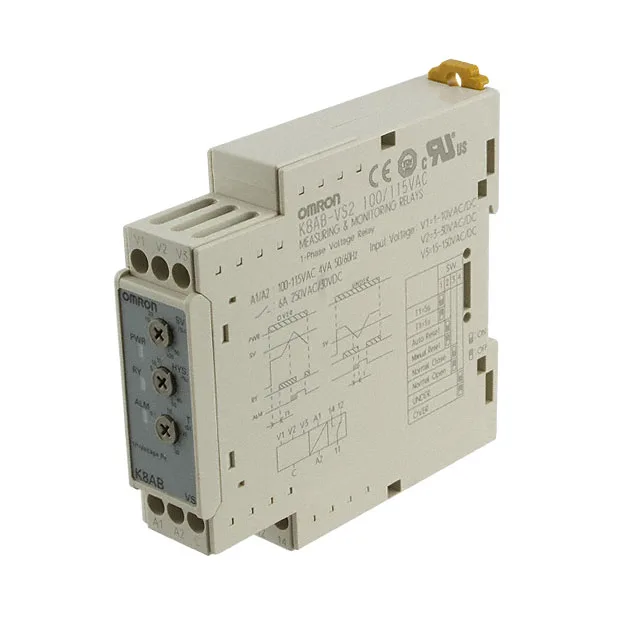

Omron K8AB-VS2 100/115VAC Voltage Sensing Relay, SPDT

MPN K8AB-VS2 100/115VAC
Obsolete

Omron K8AB-VS series, K8AB-VS2 100/115VAC voltage sensing relay, SPDT (1 Form C) output, trip range 1-150V AC/DC, adjustable delay 0.1-30 sec, DIN rail mount, 100-115VAC supply.

$192.13 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K8AB-VS2 100/115VAC specifications
ParameterValue
SeriesK8AB-VS
Output signalRelay
Product typeVoltage Sensing AC/DC
Supply voltage100 to 115VAC
MountingDIN Rail
Temp operating max60 °C
Temp operating min-20 °C
PackageBox
Delay time0.1 Sec to 30 Sec

Product details

What this voltage relay does in the panel

The K8AB-VS2 100/115VAC: The K8AB-VS2 is a single-function voltage sensing relay from Omron's K8AB-VS series — it monitors an AC or DC voltage against a user-set trip threshold and switches its SPDT output when the monitored voltage crosses that point. The trip range covers 1 to 150 V AC/DC, so it handles both low-level control signals and nominal line voltages within that band. The adjustable delay from 0.1 to 30 seconds lets you ride through momentary dips or surges without nuisance tripping. It snaps onto a DIN rail — standard for panel builds — and the SPDT relay contacts are rated 6 A at 250 V AC, enough to drive a small contactor coil or a pilot light directly.

Obsolete — sourcing reality for this part

Omron has marked the K8AB-VS2 100/115VAC as obsolete. For a line-down situation or a BOM fill, this part is available through independent surplus channels — quantities are lot-specific and confirmed at RFQ. No stock-holding claim is made here; availability and current pricing are quoted against your order.

MPN
K8AB-VS2 100/115VAC
