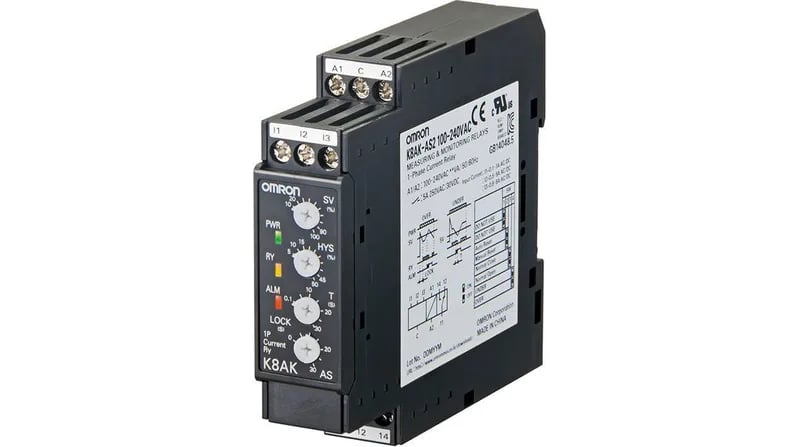

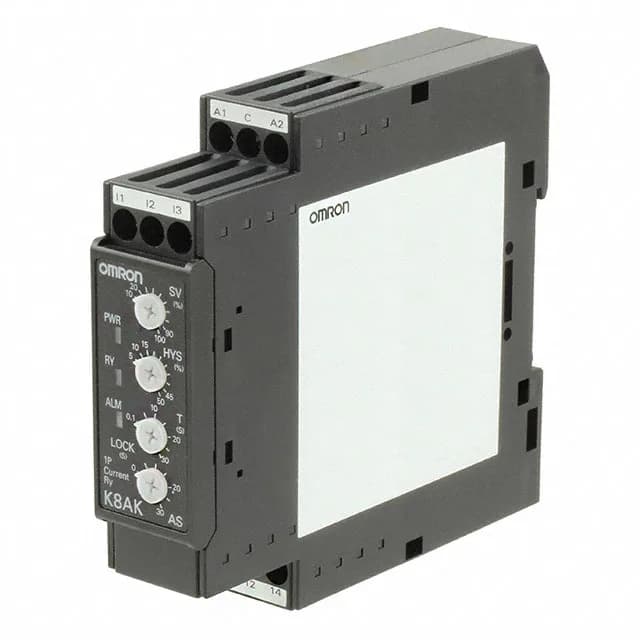

Omron K8AK-AS1 100-240VAC
MPNK8AK-AS1 100-240VAC
Active
Current Monitoring Relay 240V 1CO
$139.95 – $176.50Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | K8AK-AS |
| Mounting | DIN Rail Mount |
| Termination type | Screw Terminal |
| Contact voltage - AC | 250 V |
| Contact voltage - DC | 30 V |
| Operating voltage max. | 240 V |
| Operating voltage min. | 100 V |
| Contact current - AC | 5 A |
| Contact current - DC | 5 A |
| Monitoring current max. - DC | 500 mA |
| Monitoring current min. - DC | 2 mA |
| Power consumption | 4.6 VA |
All specifications
| Parameter | Value |
|---|---|
| Frequency max. | 65 Hz |
| Frequency min. | 45 Hz |
| Contact configuration | 1CO |
| Depth | 100 mm |
| Width | 22.5 mm |
| Height | 90 mm |
| IP rating | IP20 |
MPN
K8AK-AS1 100-240VAC
