The Omron K8AK-AS1 24VAC/DC is a current monitoring relay in the K8AK-AS series. It operates on a 24 VAC/DC control supply and provides a single 1CO (SPDT) contact rated 5 A at 250 V AC or 30 V DC. The monitoring range spans AC from 2 mA up to 200 A, and DC from 2 mA to 8 A, making it suitable for detecting overcurrent, undercurrent, or phase loss in motor circuits, heaters, or general load monitoring. Housed in a standard 22.5 mm wide DIN-rail enclosure (IP20), it fits tightly into small control panels and uses screw terminals for wiring 5 A control circuits. Frequency range is 45–65 Hz.

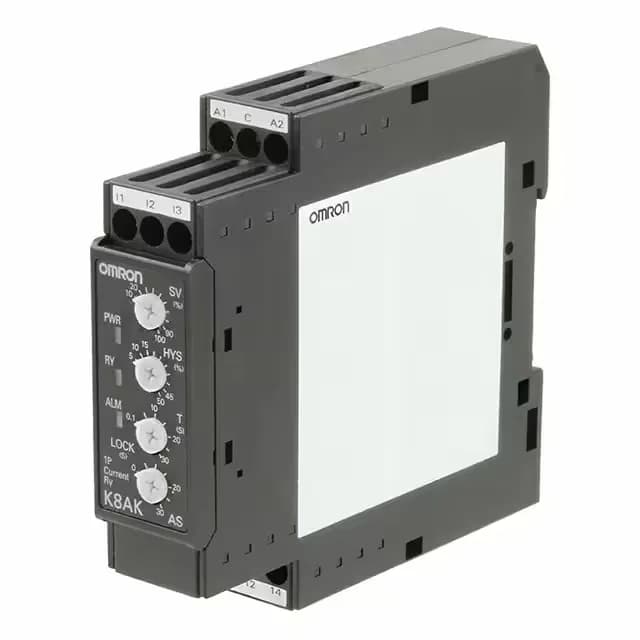

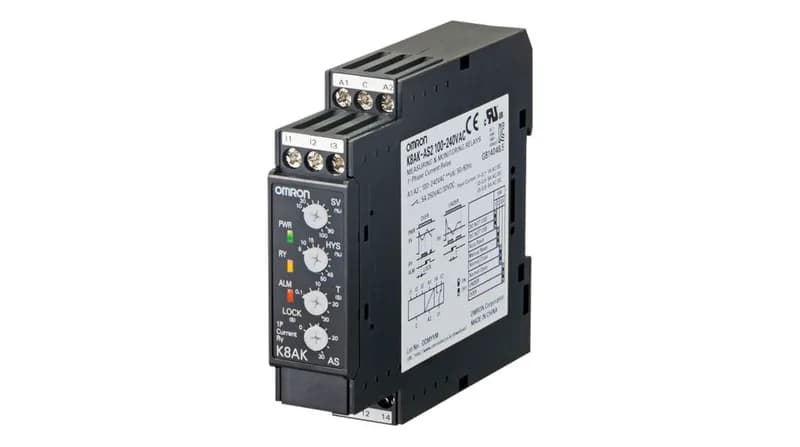

Omron K8AK-AS1 24VAC/DC Current Monitoring Relay, 200 A AC
MPNK8AK-AS1 24VAC/DC
Active
Omron K8AK-AS1 24VAC/DC, current monitoring relay, 24 VAC/DC supply, 1CO output, 200 A AC monitoring range.
$153.88 – $192.07Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | K8AK-AS |
| Mounting | DIN Rail Mount |
| Termination type | Screw Terminal |
| Contact voltage - AC | 250 V |
| Contact voltage - DC | 30 V |
| Operating voltage max. | 24 V |
| Contact current - AC | 5 A |
| Contact current - DC | 5 A |
| Monitoring current max. - AC | 200 A |
| Monitoring current max. - DC | 8 A |
| Monitoring current min. - AC | 2 mA |
| Monitoring current min. - DC | 2 mA |
All specifications
| Parameter | Value |
|---|---|
| Frequency max. | 65 Hz |
| Frequency min. | 45 Hz |
| Contact configuration | 1CO |
| Depth | 100 mm |
| Width | 22.5 mm |
| Height | 90 mm |
| IP rating | IP20 |
Product details
Frequently asked questions
What are the key monitoring current ratings for the K8AK-AS1 24VAC/DC?
The relay monitors AC current from 2 mA to 200 A and DC current from 2 mA to 8 A. The output contact is rated 5 A at 250 V AC or 30 V DC, 1CO.
MPN
K8AK-AS1 24VAC/DC
