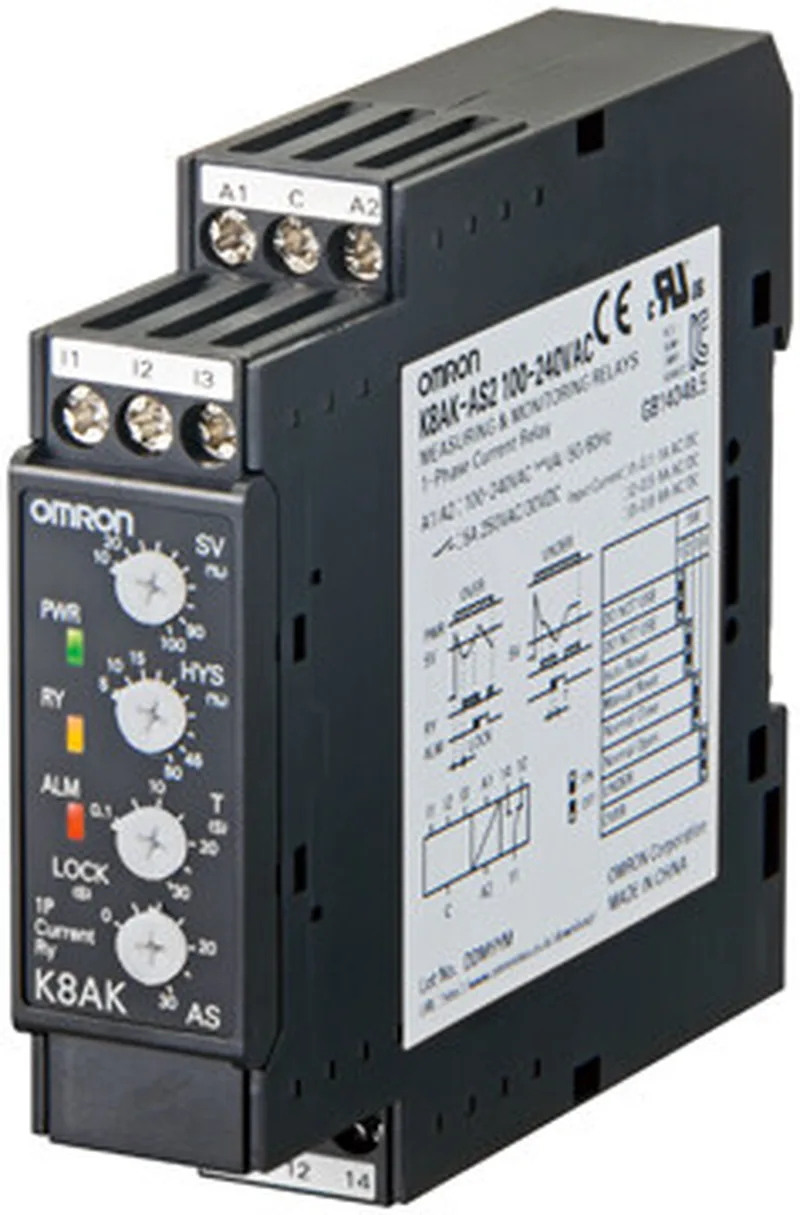

Omron K8AK-AS3 24 AC/DC

Omron K8AK-AS3 24 AC/DC Current Relay, 10-200 A AC, SPDT

MPN K8AK-AS3 24 AC/DC

Omron K8AK-AS3 24 AC/DC single-phase current relay, 10 to 100 A AC and 20 to 200 A AC ranges, SPDT 5 A output, 24 VAC/VDC supply, DIN rail mount.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K8AK-AS3 24 AC/DC specifications
ParameterValue
Supply voltage24 VAC/VDC
Phases1-phase
MountingDIN Rail

Product details

What does the K8AK-AS3 24 AC/DC monitor?

This is a single-phase current relay that monitors either overcurrent or undercurrent conditions on a 1-phase line, using a selectable current transformer input range of 10 to 100 A AC or 20 to 200 A AC. The SPDT relay output switches 5 A at 250 VAC or 30 VDC, giving a dry contact for PLC digital inputs or a motor-starter coil circuit.

DIN-rail fit and panel integration

The relay snaps onto standard DIN rail and is powered by 24 VAC/VDC, so it shares the same control bus as most PLC racks and industrial control panels. The case is molded from PC and ABS, which holds up to the usual panel environment but is not rated for washdown — keep it inside the enclosure.

Lifecycle and sourcing posture

Stock is quoted to order against the BOM quantity; availability and current pricing are confirmed at the time of RFQ through independent distribution.

MPN
K8AK-AS3 24 AC/DC
