Omron K8AK series, Current Sensing AC/DC relay, SPDT (1 Form C), 24VAC/VDC supply, adjustable delay 0.1–30 s, trip range 10–200 A AC/DC.
| Parameter | Value |
|---|---|
| Series | K8AK |
| Type | Current Sensing AC/DC |
| Parameter | Value |
|---|---|
| Supply voltage | 24VAC/DC |
| Parameter | Value |
|---|---|
| Output type | Relay |
| Parameter | Value |
|---|---|
| Operating temperature | -20°C~60°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Circuit | SPDT (1 Form C) |
| Delay time | 0.1 Sec ~ 30 Sec |
| Trip range | 10 ~ 200A AC/DC |
| Contact rating @ voltage | 5A @ 250VAC |

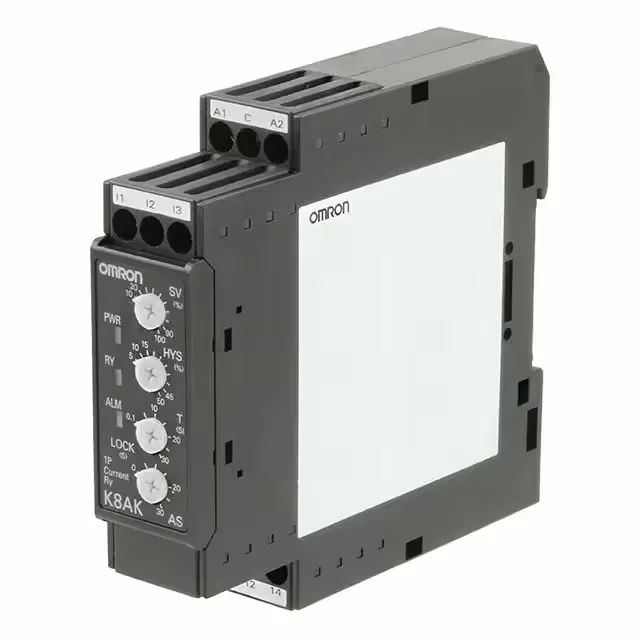

The Omron K8AK-AS3 24VAC/DC is a current sensing relay with an SPDT output, adjustable on-delay from 0.1 to 30 seconds, and a trip range spanning 10 to 200 A AC/DC. It operates on a 24VAC/DC supply and switches loads up to 5 A at 250 VAC. Mounts on DIN rail.
Set the trip current via the front dial; delay time set by a screwdriver-adjusted pot. The relay output can be wired for overcurrent or undercurrent detection. Use the isolated SPDT contact for control or alarm circuits up to 5 A resistive.
