Omron K8AK-AW2 24VAC/DC — Process / Temperature Controllers

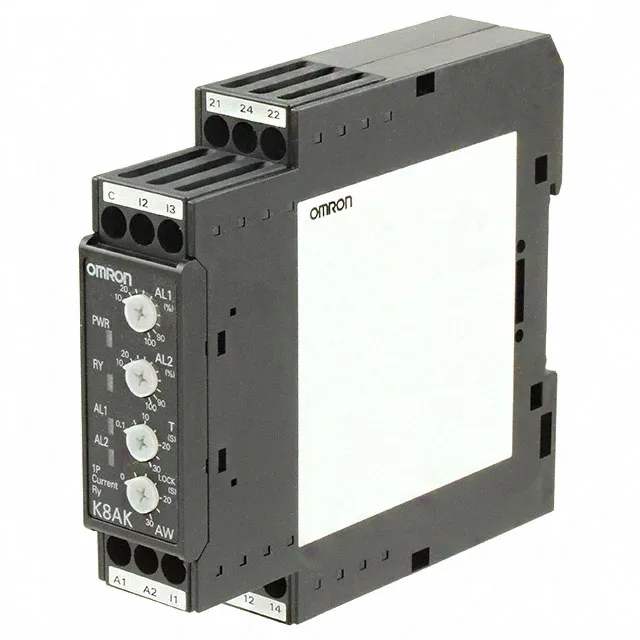

Omron K8AK-AW2 24VAC/DC Current Sensing Relay, 0.1-8A, SPDT

MPNK8AK-AW2 24VAC/DC

Active

Omron K8AK-AW2, Series K8AK, Current Sensing AC/DC Relay, SPDT, Trip Range 0.1 ~ 8A AC/DC, Delay 0.1 ~ 30 Sec, Supply 24VAC/DC, DIN Rail Mount.

$91.57 – $207.65Ref. price · indicative, final on quote

Add to RFQ

Omron K8AK-AW2 24VAC/DC datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

K8AK-AW2 24VAC/DC — Identification
Parameter	Value
Series	K8AK
Type	Current Sensing AC/DC

K8AK-AW2 24VAC/DC — Electrical
Parameter	Value
Supply voltage	24VAC/DC

K8AK-AW2 24VAC/DC — I/O
Parameter	Value
Output type	Relay

K8AK-AW2 24VAC/DC — Environmental
Parameter	Value
Operating temperature	-20°C~60°C

K8AK-AW2 24VAC/DC — Mechanical
Parameter	Value
Mounting type	DIN Rail

K8AK-AW2 24VAC/DC — Other specifications
Parameter	Value
Circuit	SPDT (1 Form C)
Delay time	0.1 Sec ~ 30 Sec
Trip range	0.1 ~ 8A AC/DC
Contact rating @ voltage	5A @ 250VAC

Product details

The K8AK-AW2 24VAC/DC: Trip range covers 0.1 to 8 A AC/DC, and delay is adjustable from 0.1 to 30 seconds—enough flexibility to filter out nuisance trips on motor inrush or transient loads. Output is a SPDT relay contact rated 5 A at 250 VAC, suitable for switching a control circuit or alarm directly.

Mounting and Setup

Ships in a box package, mounts on standard DIN rail. Supply is 24 VAC/DC, so it fits right into a 24 V panel supply without needing an extra power supply. The trip range is set via front dials: one for current level, one for delay time. No special tools needed.

Sourcing Reality

Part is active—no last-time-buy, no end-of-life notice to track. We can quote it to order for your BOM line. Availability is solid through our network.
