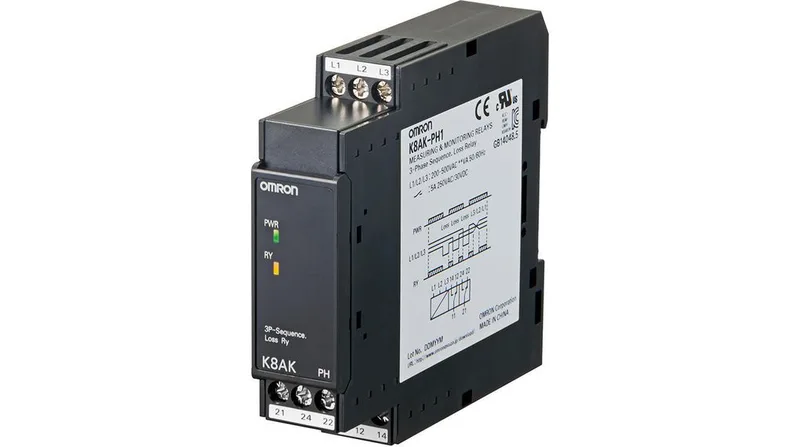

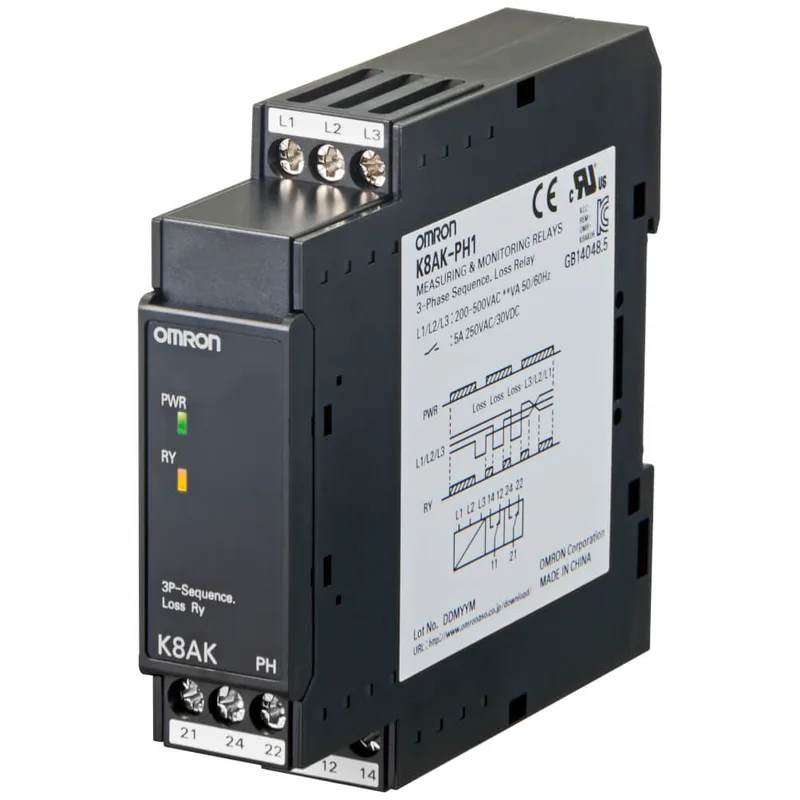

Omron K8AK-PH1
MPNK8AK-PH1
Three-phase Phase-sequence Phase-loss Relay
$40.00 – $62.83Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | K8AK-PH |
| Voltage_in | 3-phase, 200 to 480 VAC (3-wire) |
| Voltage max | 480 V |
| Voltage min | 200 V |
| Phases | 3 |
| Mounting | DIN Rail Mount |
| Terminal_type | Screw Terminal |
| Humidity max | 25 |
| Depth | 100 |
| Width | 22.5 |
| Height | 90 |
| IP rating | IP20 |
All specifications
| Parameter | Value |
|---|---|
| Indicators | Power (PWR): Green, Relay output (RY): Yellow |
| Input_load | Approx. 4.1 VA |
| Reset method | Automatic reset |
| Contact form | 1 CO |
| Storage_temp | -25 to 65°C (with no condensation or icing) |
| Output_relays | One DPDT relay (NC operation) |
| Supply voltage | 250 |
| Operating time | 100 |
| Power consumption | 4.1 VA |
| Switching current | 5 |
| Phase_monitoring_functions | Phase Sequence;Phase Failure |
MPN
K8AK-PH1
