Omron K8AK-PW1 200/240VAC — Process / Temperature Controllers

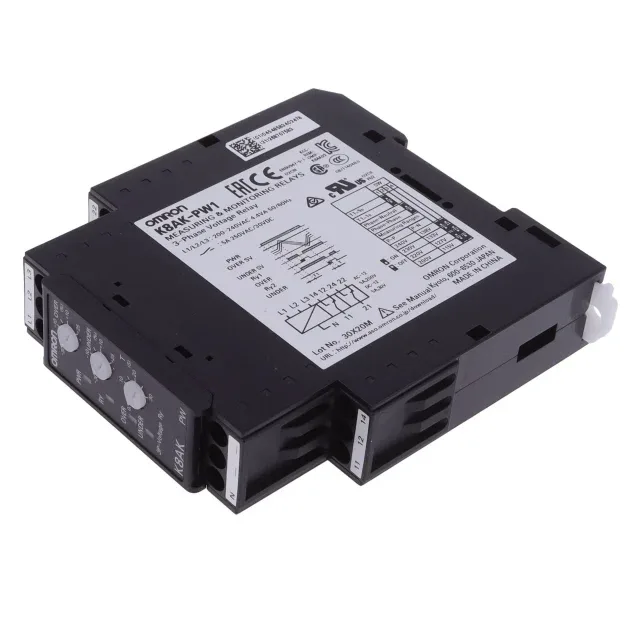

Omron K8AK-PW1 200/240VAC Voltage Sensing Relay, 5A SPDT

MPNK8AK-PW1 200/240VAC
Active

Omron K8AK series, Voltage Sensing AC relay, K8AK-PW1 200/240VAC, SPDT (1 Form C) x 2 relay outputs, 5A @ 250VAC contact rating, DIN rail mount, 200 ~ 240VAC supply.

$138.40 – $162.26Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

K8AK-PW1 200/240VAC — Identification
ParameterValue
SeriesK8AK
TypeVoltage Sensing AC
K8AK-PW1 200/240VAC — Electrical
ParameterValue
Supply voltage200 ~ 240VAC
K8AK-PW1 200/240VAC — I/O
ParameterValue
Output typeRelay
K8AK-PW1 200/240VAC — Environmental
ParameterValue
Operating temperature-20°C~60°C
K8AK-PW1 200/240VAC — Mechanical
ParameterValue
Mounting typeDIN Rail
K8AK-PW1 200/240VAC — Other specifications
ParameterValue
CircuitSPDT (1 Form C) x 2
Delay timeNo Delay
Contact rating @ voltage5A @ 250VAC

Product details

Voltage sensing relay for three-phase line monitoring

The Omron K8AK-PW1 200/240VAC is a voltage sensing AC relay designed to monitor three-phase power lines and trip the output contacts when voltage strays outside the set window. It operates directly from a 200 to 240 VAC supply, meaning it can be wired across the same line it monitors without a separate control transformer. Two SPDT (1 Form C) relay outputs, each rated 5 A at 250 VAC, provide independent alarm and trip signals. That gives you a normally-open and normally-closed contact per channel, so you can wire one set to a PLC input and the other to a shunt-trip breaker without adding interposing relays.

DIN rail fit and fixed-trip behaviour

The relay mounts on a DIN rail.

Frequently asked questions

Does the K8AK-PW1 200/240VAC have an adjustable time delay?

No, this variant has no delay — the relay responds immediately to a voltage fault. The K8AK-PW2 includes a fixed time delay if that is needed.

What is the contact rating of the K8AK-PW1 200/240VAC?

Each of the two SPDT relay outputs is rated 5 A at 250 VAC, sufficient to drive a PLC input, alarm horn, or shunt-trip coil directly.

MPN
K8AK-PW1 200/240VAC
