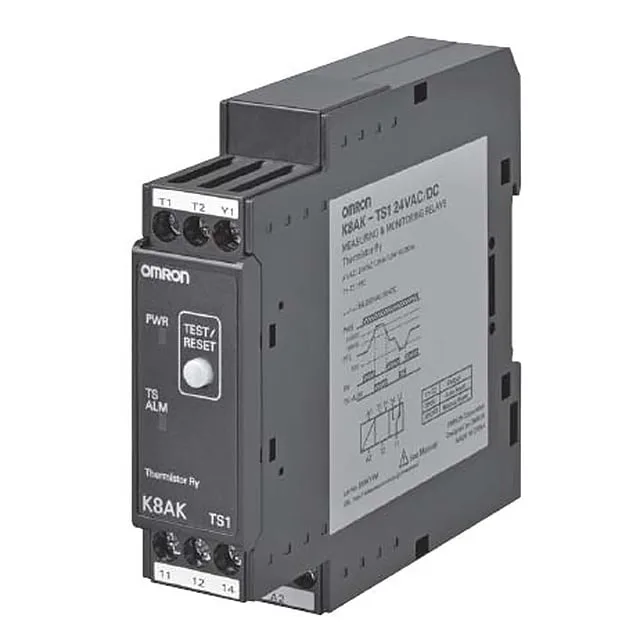

Omron K8AK-TS1 24VAC/VDC, Temperature Monitoring Relay, SPDT 5A @ 250VAC, DIN Rail, Active.
| Parameter | Value |
|---|---|
| Series | K8AK |
| Type | Temperature Monitoring |
| Parameter | Value |
|---|---|
| Supply voltage | 24VAC/DC |
| Parameter | Value |
|---|---|
| Output type | Relay |
| Parameter | Value |
|---|---|
| Operating temperature | -20°C ~ 60°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Circuit | SPDT (1 Form C) |
| Delay time | No Delay |
| Contact rating @ voltage | 5A @ 250VAC |
The Omron K8AK-TS1 24 VAC/VDC is an active temperature monitoring relay from the K8AK series, designed for motor protection via thermistor input. It switches a single-pole double-throw (SPDT) contact rated 5 A at 250 VAC, and operates on a 24 VAC/DC supply. With no built-in delay, the relay responds immediately to temperature faults, making it suitable for applications where rapid shutdown is required to prevent motor damage.
The type is Temperature Monitoring, suitable for motor protection using thermistor inputs.
The relay has an SPDT contact rated 5 A at 250 VAC and operates on a 24 VAC/DC supply. It has no built-in delay.
It is part of the Omron K8AK series of monitoring relays.
