The Omron K8AK-VW3 24VAC/DC is an under/over voltage relay with a sensing range of 20 to 600 V AC/DC and an adjustable delay of 0.1 to 30 s. SPDT relay output (5 A at 250 VAC) directly drives a contactor coil or a PLC input. Supply the unit itself from 24 VAC/DC, making it easy to drop into an existing control transformer or DC bus. Operating temperature from -20°C to 60°C covers most pit-side cabinets without derating.

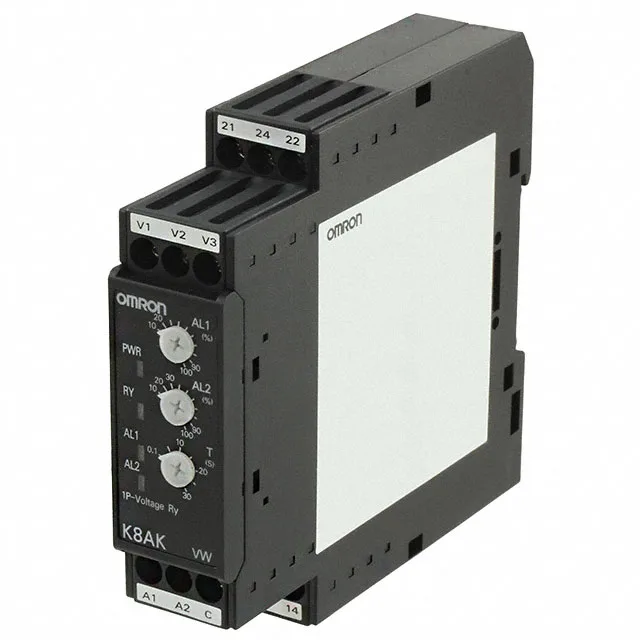

Omron K8AK-VW3 24VAC/DC Voltage Sensing Relay, SPDT, Active
MPNK8AK-VW3 24VAC/DC
Active
Omron K8AK-VW3 24VAC/DC, Voltage Sensing AC/DC relay, SPDT, DIN rail mount, adjustable trip 20-600 V AC/DC, delay 0.1-30 s, 5 A @ 250 VAC contact rating.
$71.12 – $186.12Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | K8AK |
| Type | Voltage Sensing AC/DC |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24VAC/DC |
I/O
| Parameter | Value |
|---|---|
| Output type | Relay |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | -20°C~60°C |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
Other specifications
| Parameter | Value |
|---|---|
| Circuit | SPDT (1 Form C) |
| Delay time | 0.1 Sec ~ 30 Sec |
| Trip range | 20 ~ 600V AC/DC |
| Contact rating @ voltage | 5A @ 250VAC |
Product details
Frequently asked questions
What type of relay is the K8AK-VW3 24VAC/DC?
It is a Voltage Sensing AC/DC relay – covers both under- and over-voltage monitoring with a single SPDT output.
What series does the K8AK-VW3 24VAC/DC belong to?
It is part of the Omron K8AK series of industrial monitoring relays.
MPN
K8AK-VW3 24VAC/DC
