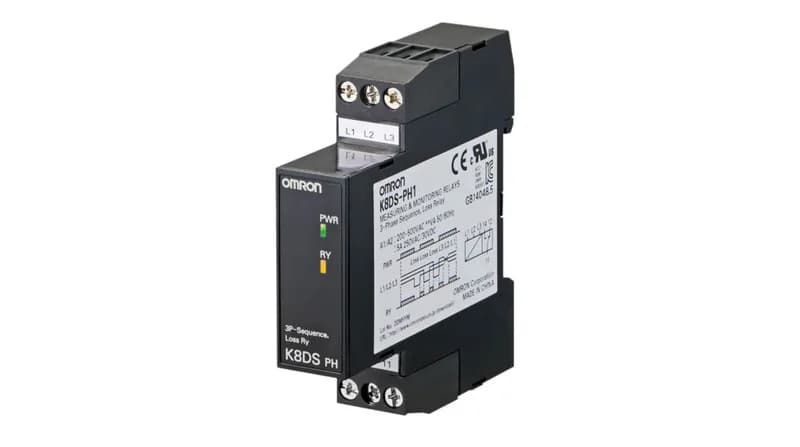

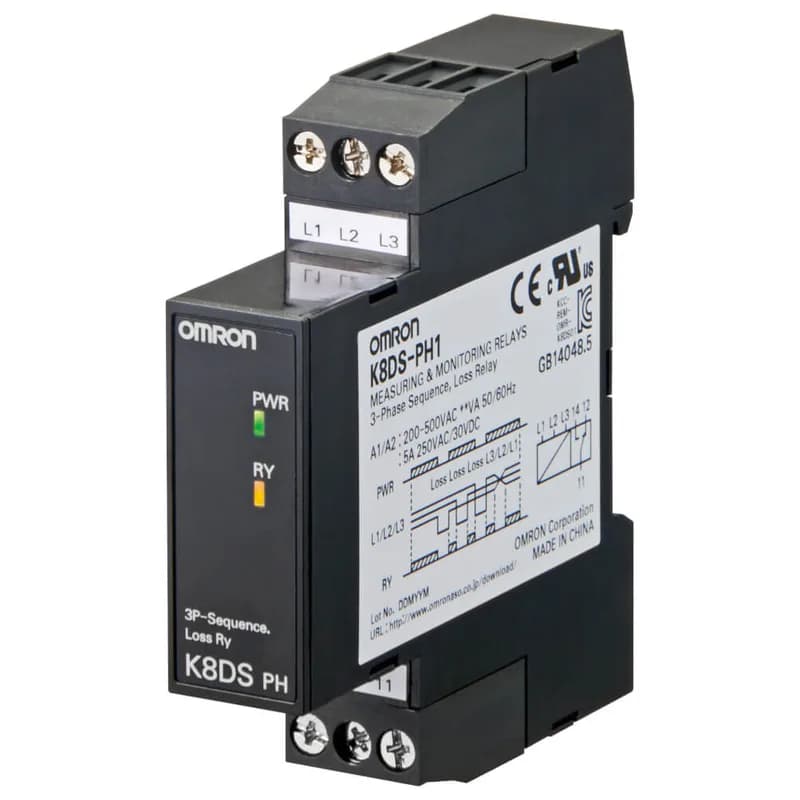

Omron K8DS-PH1
MPNK8DS-PH1
Three-phase Phase-sequence Phase-loss Relay
$22.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | K8DS |
| Voltage_in | 3-phase, 200 to 480 VAC (3-wire) |
| Voltage max | 480 V |
| Voltage min | 200 V |
| Phases | 3 |
| Phase asymmetric measurement max. max | 80 % |
| Mounting | DIN Rail Mount |
| Terminal_type | Screw Terminal |
| Humidity max | 25 |
| Depth | 74 |
| Width | 17.5 |
| Height | 80 |
All specifications
| Parameter | Value |
|---|---|
| IP rating | IP20 |
| Indicators | Power (PWR): Green, Relay output (RY): Yellow |
| Input_load | Approx. 2.7 VA |
| Reset method | Automatic reset |
| Contact form | 1 CO |
| Storage_temp | -25 to 65°C (with no condensation or icing) |
| Output_relays | One SPDT relay (NC operation) |
| Supply voltage | 250 |
| Operating time | 100 |
| Switching current | 5 |
| Switching capacity | 150 W |
| Phase_monitoring_functions | Phase Sequence;Phase Failure |
MPN
K8DS-PH1
