The Omron K8DT-AS1CA is the kind of current sensing relay you'd grab for monitoring motor loads across a lube route or conveyor line. It adjusts down to 2 mA and up to 500 mA, AC or DC, so it covers everything from a small solenoid to a modest motor draw. I've used these to catch a dry-running pump before it cooked the bearings—set the delay long enough to skip the start-up spike and you've got a reliable watchdog. It runs on straight 100-240 VAC, no separate power supply, and the SPDT contacts handle 5 A at 250 VAC, enough to sound an alarm or drop a starter.

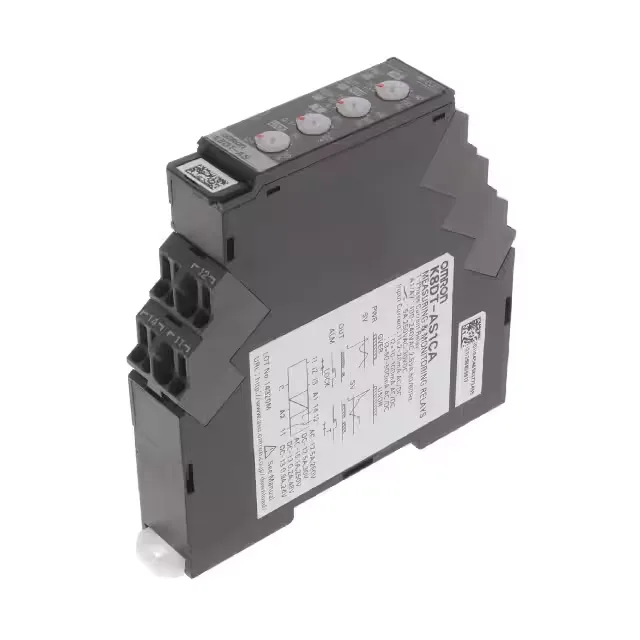

Omron K8DT-AS1CA Current Sensing Relay, SPDT, 2-500mA
MPNK8DT-AS1CA
Active
Omron K8DT-AS1CA, K8DT series, Current Sensing AC/DC relay, SPDT, 2-500mA adjustable trip, 0.1-30s delay, 100-240VAC supply, 5A @ 250VAC relay output.
$153.03 – $176.57Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | K8DT |
| Type | Current Sensing AC/DC |
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
| Parameter | Value |
|---|---|
| Output type | Relay |
| Parameter | Value |
|---|---|
| Operating temperature | -20°C~60°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Circuit | SPDT (1 Form C) |
| Delay time | 0.1 Sec ~ 30 Sec |
| Trip range | 2 ~ 500mA AC/DC |
| Contact rating @ voltage | 5A @ 250VAC |
Product details
MPN
K8DT-AS1CA
