Omron K8DT-AS2TD — Process / Temperature Controllers

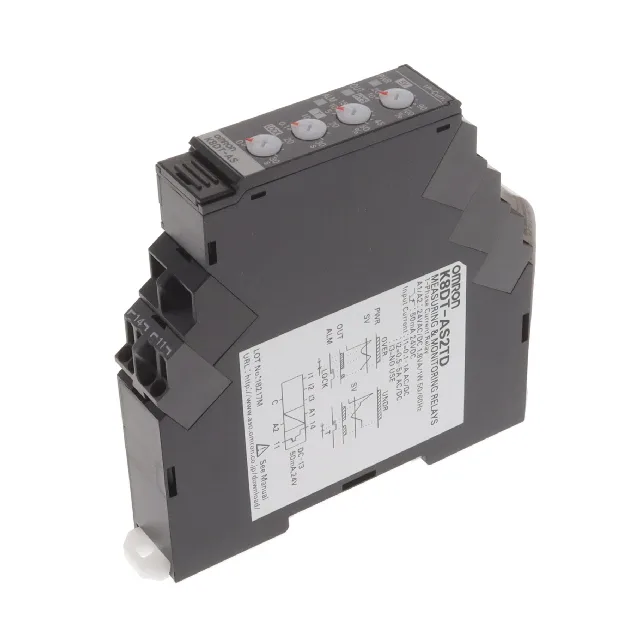

Omron K8DT-AS2TD Current Sensing AC/DC Relay, NPN Output

MPNK8DT-AS2TD
Active

Omron K8DT-AS2TD, Series K8DT, Type Current Sensing AC/DC, Circuit NPN, Solid State Output, DIN Rail Mount, Trip Range 0.1 ~ 5A AC/DC, Delay Time 0.1 Sec ~ 30 Sec, Supply Voltage 24VAC/DC.

$144.76 – $167.03Ref. price · indicative, final on quote
Omron K8DT-AS2TD datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

K8DT-AS2TD — Identification
ParameterValue
SeriesK8DT
TypeCurrent Sensing AC/DC
K8DT-AS2TD — Electrical
ParameterValue
Supply voltage24VAC/DC
K8DT-AS2TD — I/O
ParameterValue
Output typeSolid State
K8DT-AS2TD — Environmental
ParameterValue
Operating temperature-20°C ~ 60°C
K8DT-AS2TD — Mechanical
ParameterValue
Mounting typeDIN Rail
K8DT-AS2TD — Other specifications
ParameterValue
CircuitNPN
Delay time0.1 Sec ~ 30 Sec
Trip range0.1 ~ 5A AC/DC

Product details

Current Sensing Relay for AC or DC Branches

The Omron K8DT-AS2TD is a current-sensing relay for AC or DC systems, adjustable from 0.1 up to 5A, with a solid-state NPN output and a configurable delay between 0.1 and 30 seconds.

Trip Range and Delay – Setting the Operating Window

The trip range of 0.1 to 5 A AC/DC covers small motor loads, heater currents, and DC drive circuits. Set the potentiometer to the nominal running current; the delay timer then filters out startup inrush or short transients up to 30 seconds. Because the output is a solid-state NPN (sinking) device, it interfaces directly with a PLC digital input or an alarm module – no interposing relay needed. Verify your input card sinks or sources correctly.

Frequently asked questions

What type of current does it sense – AC, DC, or both?

It senses both AC and DC current, with a trip range of 0.1 to 5 A.

What is the output type and logic?

The output is a solid-state NPN (sinking) switch, suitable for driving PLC inputs or alarms within its rated supply voltage.

What is the delay time range?

Adjustable from 0.1 to 30 seconds, set by a front-panel dial.

Does it mount on a DIN rail?

Yes, the K8DT-AS2TD is designed for standard DIN rail mounting.
