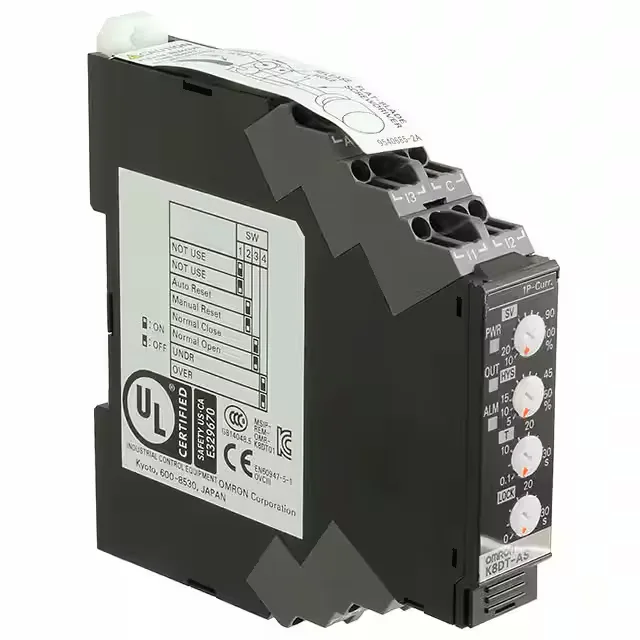

Omron K8DT-AS3TA

Omron K8DT-AS3TA Current Sensing Relay, 10-200A AC/DC, NPN

MPN K8DT-AS3TA
Active

Omron K8DT series, current sensing relay AC/DC, 10-200 A trip range, NPN solid-state output, adjustable delay 0.1-30 s, DIN rail mount, 100-240 VAC supply.

$153.03 – $176.57 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K8DT-AS3TA specifications
ParameterValue
SeriesK8DT
Output signalSolid State
Product typeCurrent Sensing AC/DC
Supply voltage100 to 240VAC
MountingDIN Rail
Temp operating max60 °C
Temp operating min-20 °C
PackageBox
Delay time0.1 Sec to 30 Sec
Trip range10–200 A AC

Product details

Omron K8DT-AS3TA is a current sensing relay that sees AC or DC from 10 to 200 A. The NPN solid-state output sinks a load from a separate supply — plan for that; this is not a source output. Adjustable delay from 0.1 to 30 seconds lets you ride through motor inrush without calling a trip, as long as the fault is sustained past that window.

Trip range of 10–200 A AC/DC covers everything from a small conveyor motor to a mid-size pump. The 100–240 VAC supply is universal for panel control transformers. Watch the NPN output: it's a sinking transistor; your PLC input or relay coil must pull up to its own supply. Temperature rating –20 to 60 °C is good for most enclosures without active cooling.
