The Omron K8DT-AW1CA is an active-production current sensing relay that monitors AC or DC current from 2 to 500 mA, with an adjustable delay from 0.1 to 30 seconds. The SPDT (1 Form C) relay output can switch 5 A at 250 VAC, suitable for alarm, shutdown, or feedback circuits in control panels. Supply voltage is fixed at 100–240 VAC; the unit mounts on a DIN rail. The trip point is set via a potentiometer over the 2–500 mA range, and the trip delay is independently adjustable. For overcurrent or undercurrent detection, this relay provides a single SPDT changeover contact — no fieldbus or analog output, just a clean dry contact for the PLC or annunciator. The 5 A contact rating handles most intermediate relay coils or signal loads without an interposer.

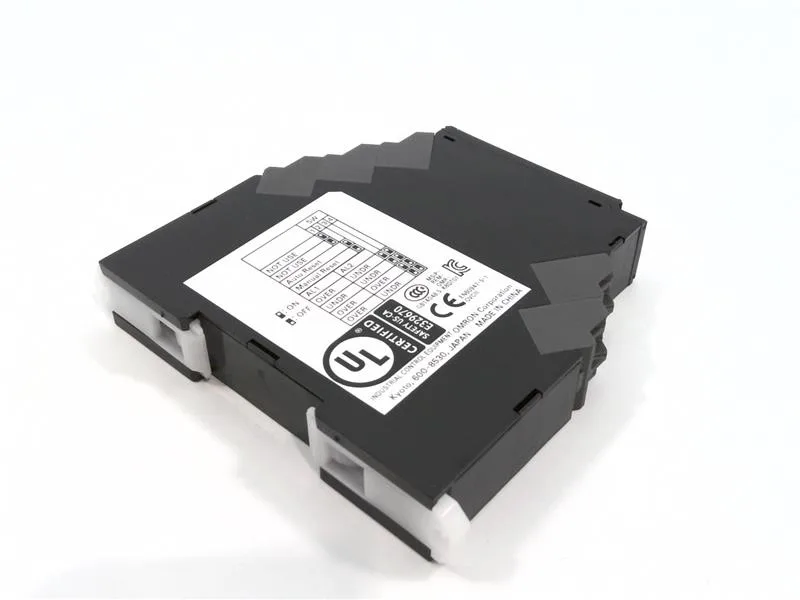

Omron K8DT-AW1CA Current Sensing Relay, 2–500mA
MPNK8DT-AW1CA
Active
Omron series K8DT-AW1CA, current sensing relay, AC/DC, trip range 2–500 mA, adjustable delay, SPDT output, DIN rail mount.
$209.98Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | K8DT |
| Type | Current Sensing AC/DC |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
I/O
| Parameter | Value |
|---|---|
| Output type | Relay |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | -20°C~60°C |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
Other specifications
| Parameter | Value |
|---|---|
| Circuit | SPDT (1 Form C) |
| Delay time | 0.1 Sec ~ 30 Sec |
| Trip range | 2 ~ 500mA AC/DC |
| Contact rating @ voltage | 5A @ 250VAC |
Product details
Frequently asked questions
What are the key ratings of K8DT-AW1CA?
It senses AC/DC current from 2 to 500 mA, has an adjustable delay of 0.1 to 30 seconds, an SPDT relay output rated 5 A at 250 VAC, and operates on 100–240 VAC supply voltage. Mounting is DIN rail.
MPN
K8DT-AW1CA
