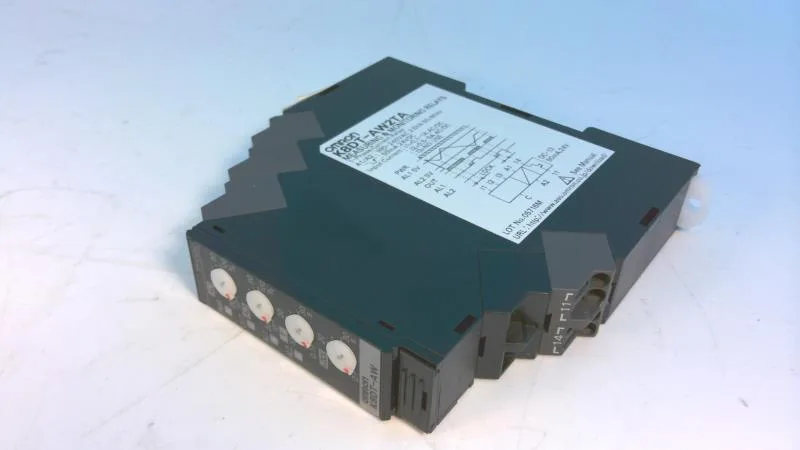

Omron K8DT-AW2TA

Omron K8DT-AW2TA Current Sensing Relay, 0.1-5A AC/DC, DIN Ra

MPN K8DT-AW2TA
Active

Omron K8DT-AW2TA, current sensing relay AC/DC, adjustable trip 0.1-5A, delay 0.1-30 sec, NPN solid-state output, DIN rail mount.

$83.11 – $216.66 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

K8DT-AW2TA specifications
ParameterValue
SeriesK8DT
Output signalSolid State
Product typeCurrent Sensing AC/DC
Supply voltage100 to 240VAC
MountingDIN Rail
Temp operating max60 °C
Temp operating min-20 °C
PackageBox
Delay time0.1 Sec to 30 Sec
Trip range0.1–5 A AC

Product details

Current sensing relay for over/under monitoring

The K8DT-AW2TA is a current-production current sensing relay from Omron's K8DT series. It monitors AC/DC current from 0.1 to 5 A with an adjustable trip threshold and a delay time of 0.1 to 30 seconds. The NPN solid-state output sinks to a PLC input without extra interface hardware. Supply voltage is 100-240 VAC, so it fits any control panel worldwide. For the storeroom, this is a single SKU that covers a broad range of motor protection and load-monitoring applications. It's active, so no end-of-life worries for your BOM.

Mounting and supply

Mounts on standard DIN rail. The enclosure is compact, leaving room for other components in the gland plate area. No derating for ambient within that range is specified, so treat it as full-rated. The trip range and delay are set via front-panel dials; no programming tool required.

MPN
K8DT-AW2TA
