Omron K8DT-AW3CD — Process / Temperature Controllers

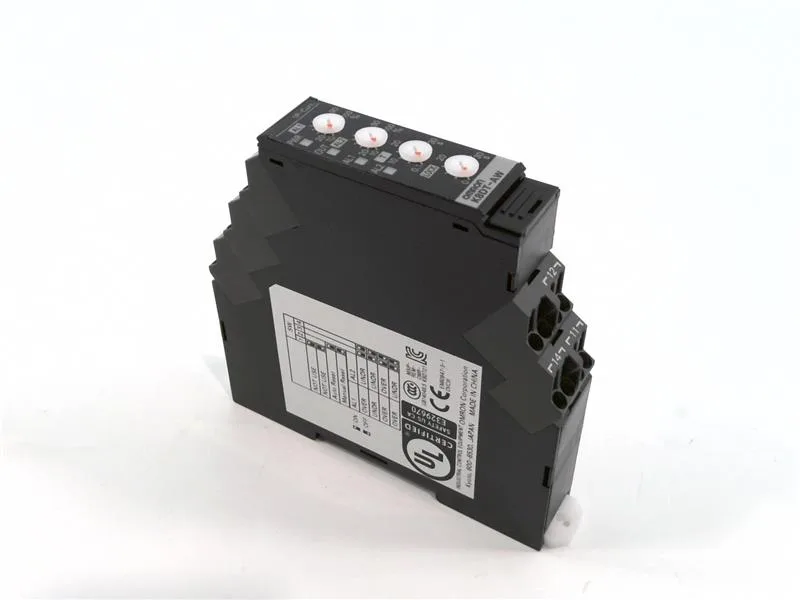

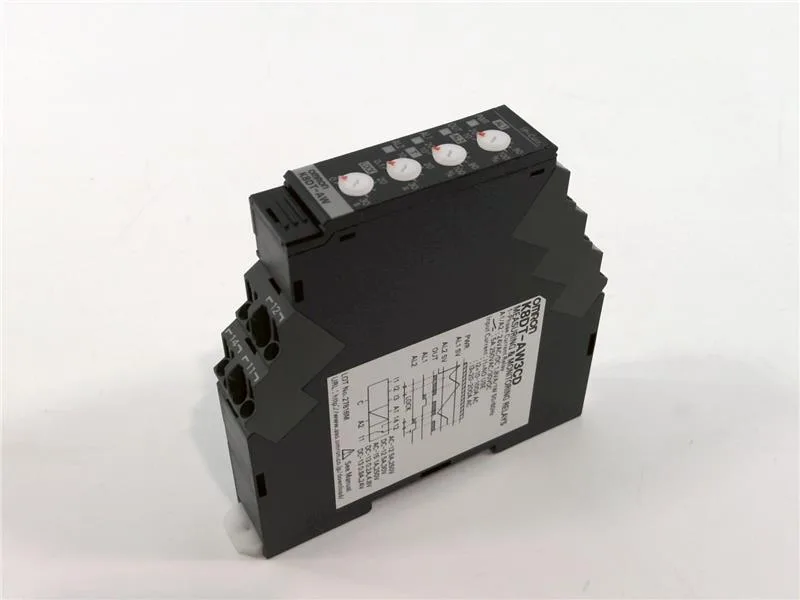

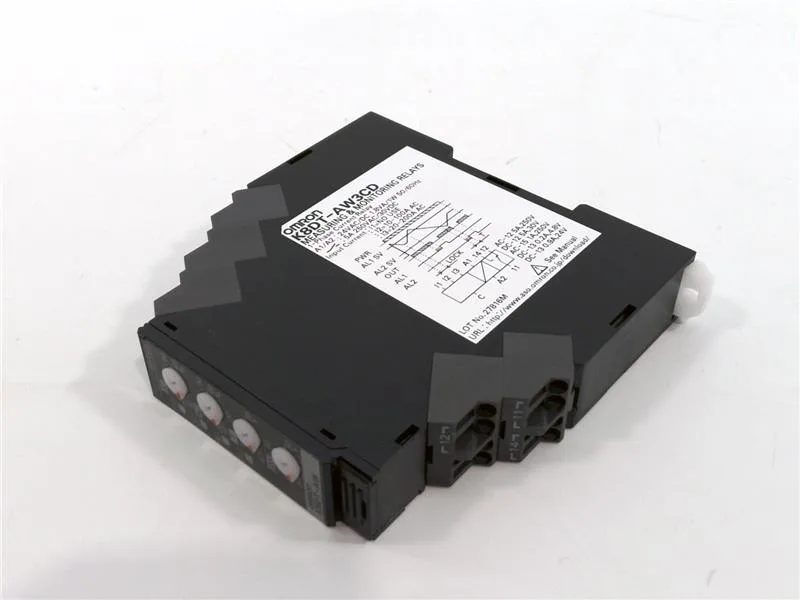

Omron K8DT-AW3CD Current Sensing Relay, 10-200A

MPNK8DT-AW3CD
Active

Omron K8DT-AW3CD Current Sensing AC/DC Relay, 10-200A Trip Range, 0.1-30s Delay, 24VAC/DC Supply, SPDT Output, DIN Rail.

$93.83 – $209.98Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

K8DT-AW3CD — Identification
ParameterValue
SeriesK8DT
TypeCurrent Sensing AC/DC
K8DT-AW3CD — Electrical
ParameterValue
Supply voltage24VAC/DC
K8DT-AW3CD — I/O
ParameterValue
Output typeRelay
K8DT-AW3CD — Environmental
ParameterValue
Operating temperature-20°C~60°C
K8DT-AW3CD — Mechanical
ParameterValue
Mounting typeDIN Rail
K8DT-AW3CD — Other specifications
ParameterValue
CircuitSPDT (1 Form C)
Delay time0.1 Sec ~ 30 Sec
Trip range10 ~ 200A AC/DC
Contact rating @ voltage5A @ 250VAC

Product details

Relay Spec at a Glance

Omron K8DT-AW3CD is an active current sensing relay covering AC/DC loads from 10 A to 200 A, with an adjustable trip delay from 0.1 to 30 seconds. It operates on a 24 VAC/DC supply and switches a single-pole SPDT relay rated at 5 A at 250 VAC. The housing clips onto standard DIN rail, with push-in terminals for fast wiring.

Adjustable Trip & Delay

Trip point sets anywhere within 10–200 A AC/DC via a front dial. The timer delays the output from 0.1 to 30 seconds — useful for motor start inrush filtering or nuisance trip suppression. No external timer module needed.

Integration Pointers

Mounts on DIN rail with push-in terminals. Operates on 24 VAC/DC control supply. Output is SPDT relay contacts rated 5 A at 250 VAC; no auxiliary power needed at contacts.

Frequently asked questions

What is the type of the K8DT-AW3CD?

It is a current sensing relay for both AC and DC circuits.

What is the series of the K8DT-AW3CD?

It belongs to the Omron K8DT series.

MPN
K8DT-AW3CD
